Smart ATO Lite
Lite But Not Least
SATO-260P
Smart ATO Lite
With its optical dual-sensor which provides precise detection of water level, Smart ATO Lite can automatically replenish your aquarium to maintain a consistent salinity level better than manually and save you from this annoying chore.
EXTREMELY COMPACT DESIGN

Smart ATO Lite is one of the most compact ATO in the world. Equipped with a tiny dual-optical sensor, it is easy to use for anyone and anywhere.

SATO-260P
INTELLIGENT SECURITY TECHNOLOGY

The unique QST (Quick Security Technology) can detect sensor or pump failure and avoid overfilling instantly without any complicated settings. With the intuitive LED indicator, you can know its status at a glance.

SATO-260P
SUPERIOR EVOLUTION OF SAFETY

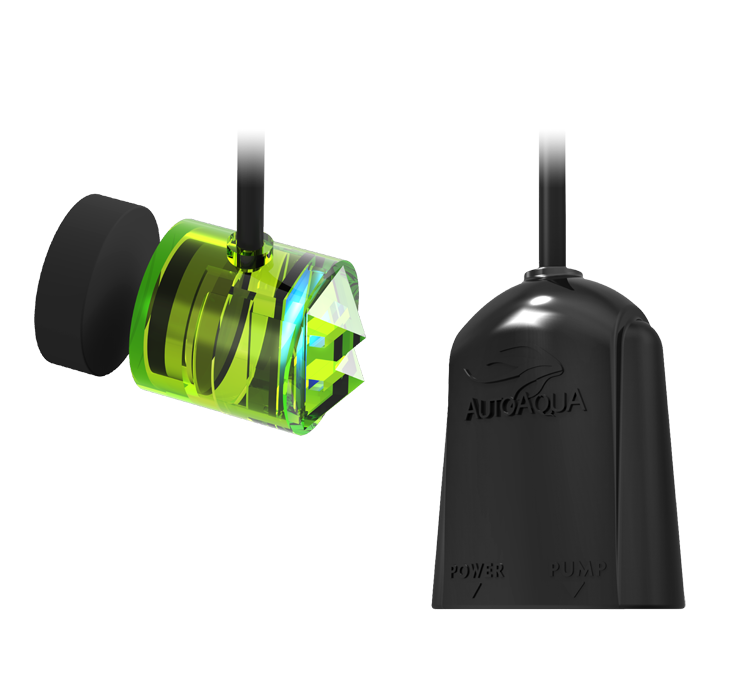

The patented magnetic-mount dual sensor provides not only better protection but also easier installation. It can be set at any colors of the wall and work well in full dark.

SATO-260P
PURSUIT OF PERFECTION

The special design of the Smart ATO Lite hub can prevent the connector of the pump and the power adapter from rusted or damaged due to water and ensure users safety and longer product lifetime.

SATO-260P
Small but Mighty

Smart ATO Lite is a compact auto top off system for both nano and medium aquariums. Combined an ATO level sensor and a fail-safe sensor in one pack and integrated with QST (Quick Security Technology), which provides real-time protection against any failure and detects water empty, Smart ATO Lite offers you a safe and economical choice of auto top off

ATO_Lite
INCLUDED
Lite_IN
Smart ATO Lite Controller
Lite_IN
Universal Power Adapter
Lite_IN
DC Pump
Lite_IN
Universal Tube Holder
Lite_IN
Siphon Break
Lite_IN
Tubing 6.5 ft (200 cm)
SPECIFICATION
Smart ATO Lite
Smart ATO Lite (SATO-260P)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1 A
    - Power Cord Length : 6 ft (180 cm)
  • DC Pump :
    - Head : 8.2 feet (250 cm)
    - Flow Rate : 74 gph (280 lph)
    - Pump Cord Length : 6 feet (180 cm)
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Universal Tube Holder : 1/2 inch (12.7 mm)
  • Length of Cable between Sensor and Controller : 4 feet (120 cm)
  • Tubing :
    - Length : 6.5 feet (200 cm)
    - ID : 6.5 mm / OD : 9.0 mm
  • INSTALLATION DIAGRAM
    figure01
    *Please avoid setting up the sensor in an area with micro bubbles or direct light.
