DC Solenoid Valve
Model: SV-12V
What It Does

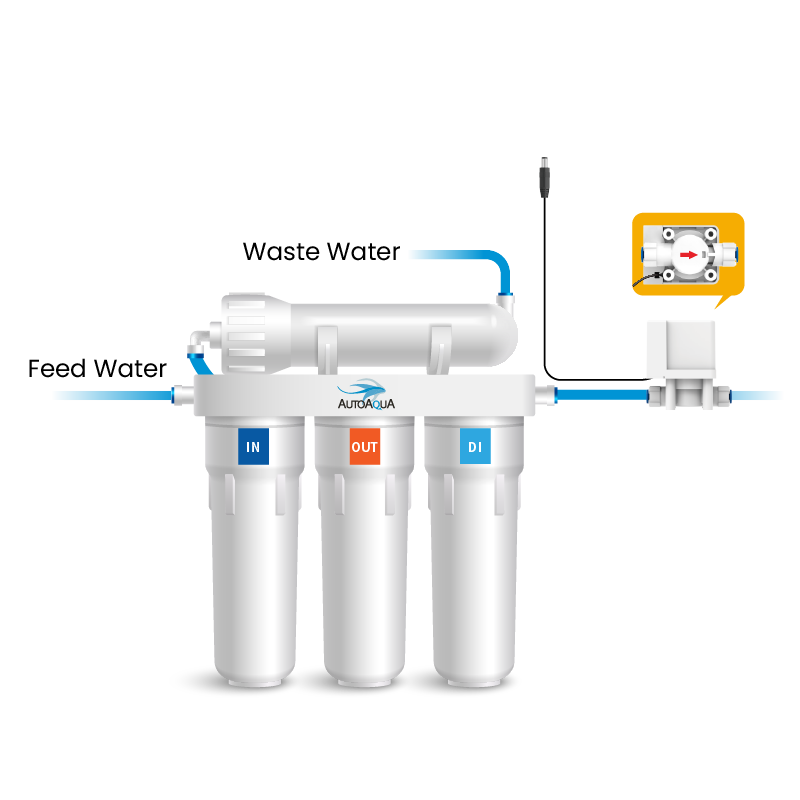

- Direct RO Water Supply – Replaces the DC Refill Pump, directly supplying water from an RO system for smoother refills.
- Wide Compatibility – Works with AUTOAQUA ATO and AWC systems, enhancing system flexibility.
Compatibility
- Works with all AUTOAQUA products using submerged pump in ATO and AWC system.
- Ideal for aquarium refill systems, RO units, and other water flow control applications.
Specifications
| Specifications |
| Power |
6 W @ 12 VDC |
| Pressure |
0.02-0.7MPA |
| DC Connector |
5.5 x 2.5 mm Male |
| Cable Length |
4 feet (120 cm) |
Notices
- The solenoid valve should be used with filtered water only. Salt water, tap water, etc. are not allowed to avoid clogging or water leakage.
- To avoid water leakage, the water inlet must have sufficient pressure (0.02–0.7 MPa), or the height difference between the solenoid valve inlet and the bottom of the ATO reservoir must be at least 200 cm (6.5 feet).
- If the solenoid valve is used with an ATO or AWC, a mechanical float valve must be installed as a fail-safe accessory.
- For best performance, keep the solenoid valve away from moisture or splashing to prevent rust.
