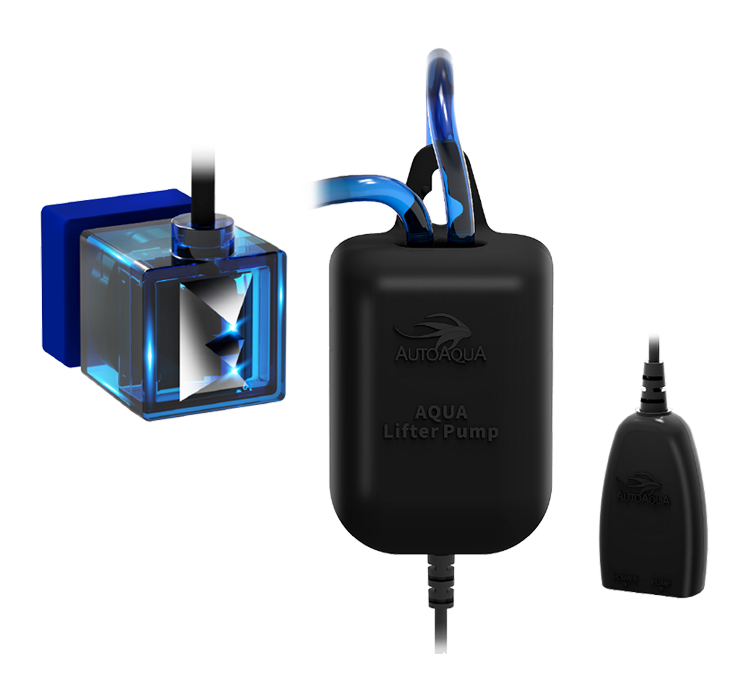

Smart ATO Lifter
Premium Performance and Excellent Auto Top Off System
SATO-272D
ATO Lifter

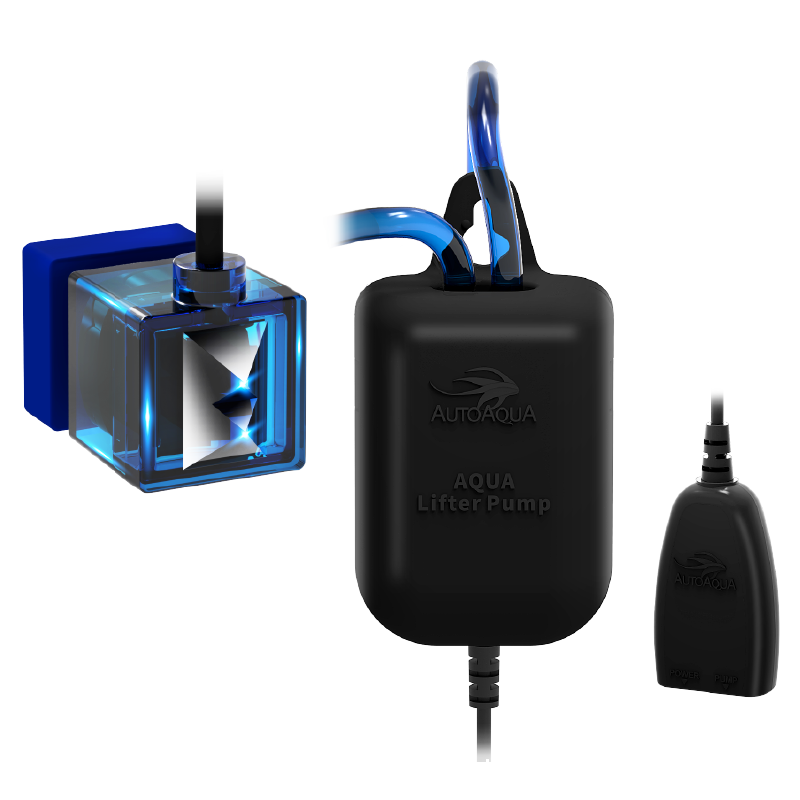

Smart ATO Lifter has powerful performance and excellent auto top off functions, with silent AQUA Lifter Pump and brand new ATO controller which makes sure you have accurate detection regularly and quantitatively. With the clever shape and neat design, Smart ATO Lifter is also perfect for your compact aquarium.
WORKS PERFECTLY ●
TOP-NOTCH PERFORMANCE

Smart ATO Lifter features a particularly neat design with simple user-friendly controls, rugged construction, and easy maintenance and installation. Built-in QST(Quick Security Technology) will give audible and visual alarm for failure situations. One of the best investments you can make for your saltwater tank.

ATO Lifter
ULTRA-DEFINITION RESOLUTION ●
PRECISE DETECTION

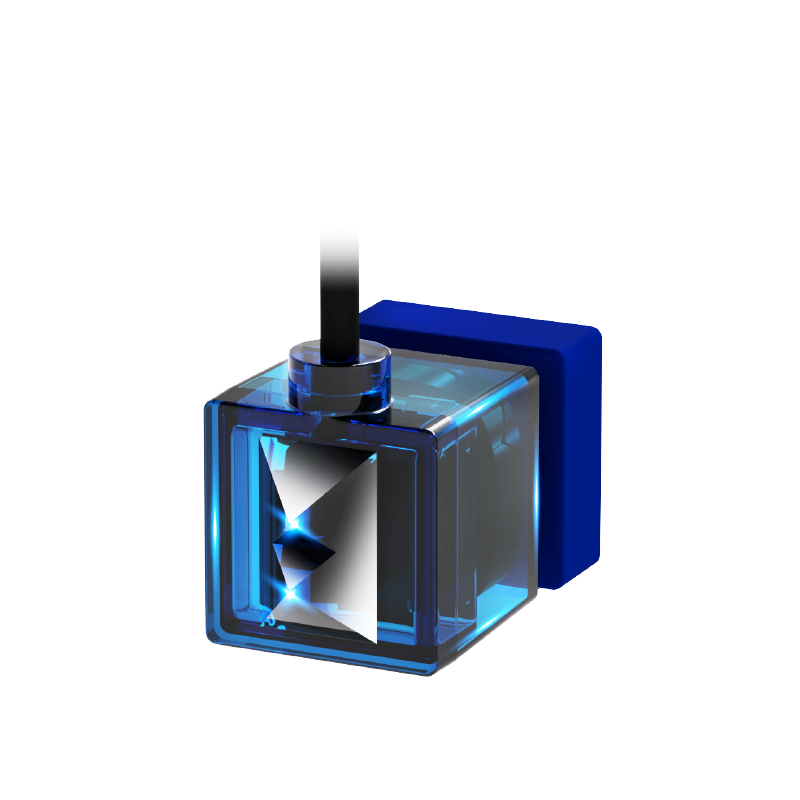

The brand new highly sensitive square dual optical sensor for the detection of the water level greatly reduces the delay, allowing hobbyist to be a step more precise at any time during auto topping-off! It is extremely compact and has no moving parts that can fail.

ATO Lifter
HIGH PERFORMANCE ●
EXTREMELY COMPACT

The optical eye is magnetically coupled with the magnet measuring only ¼” thick. It can be mounted to most clear, tinted, or painted surfaces up to ½” thick. The sensor operates in the daytime or complete darkness so it’s safe for use when hidden inside your aquarium stand or in the back chambers of an all-in-one aquarium.

ATO Lifter
REFILLING STABILIZATION ●
WORKING STRENGTH

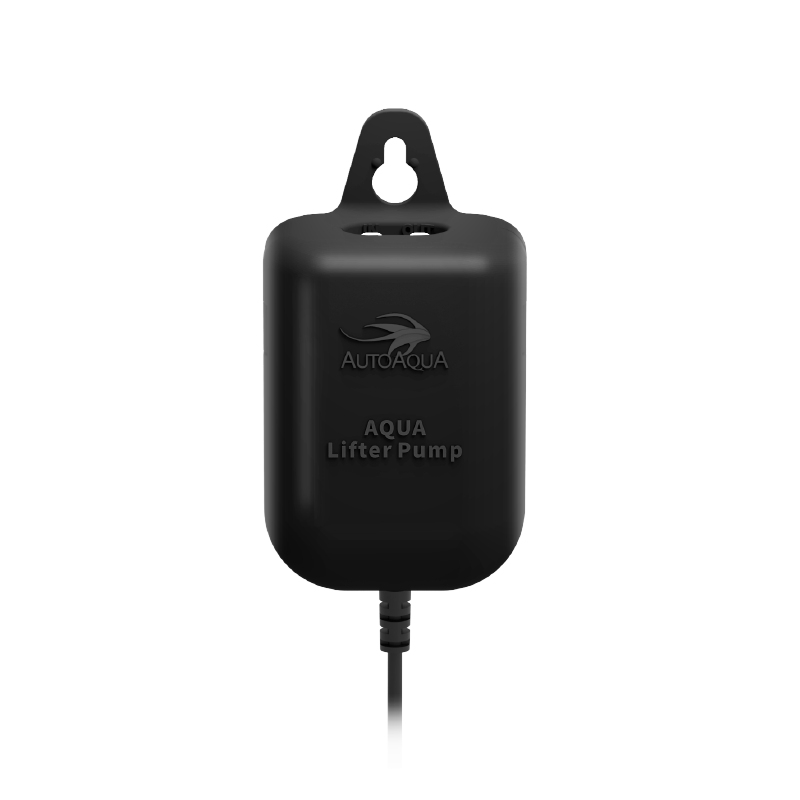

AQUA Lifter Pump is a replaceable Diaphragm Pump, which adds water slowly to reach the desired water level accurately. Also, slow replenishment can lessen the pressure to the aquarium ecosystem. It has built-in Anti-Siphon Valve to safeguard against forward siphoning.
Compared with submersible pumps, diaphragm pumps have the benefits of safely running dry and no wire in the aquarium.

ATO Lifter
TRIED AND TRUE ●
QUIET AND WELL-BUILT

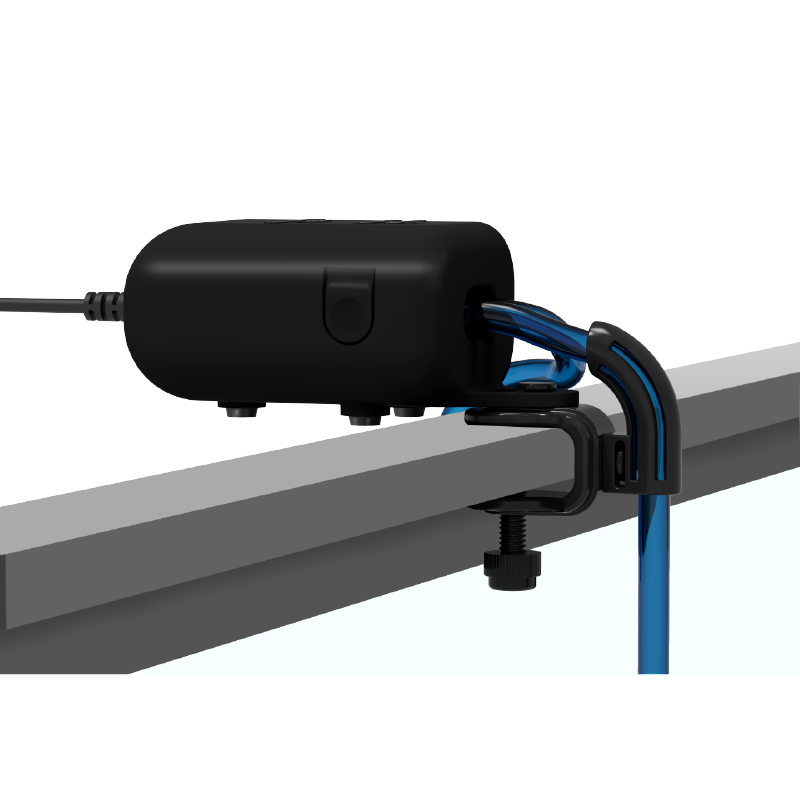

The holder of the AQUA Lifter Pump can be hanged on both rimless and rimmed aquariums, according to the configuration of the tank.
Also, it can be easily mounted with a screw or nail on your aquarium cabinet/stand to reduce pump vibration.

ATO Lifter
VERSATILE DESIGN ●
FLEXIBLE INSTALLATION

Silicon gasket is perfect for noise and vibration reduction when AQUA Lifter Pump is working.

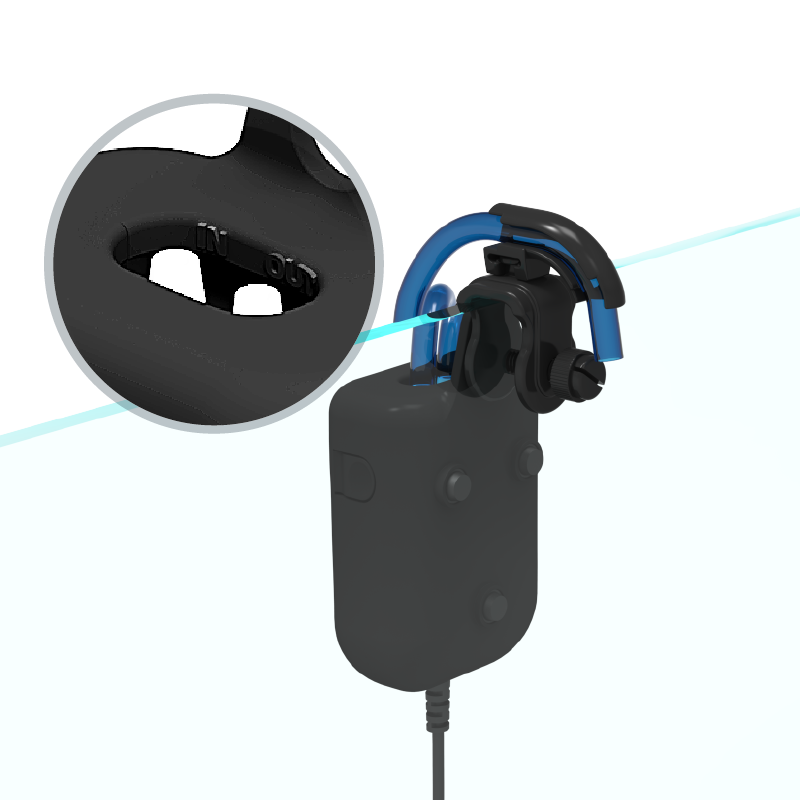

It is clearly marked with water inlet and outlet symbol to prevent installation error.

ATO Lifter
Small in size but full of power!

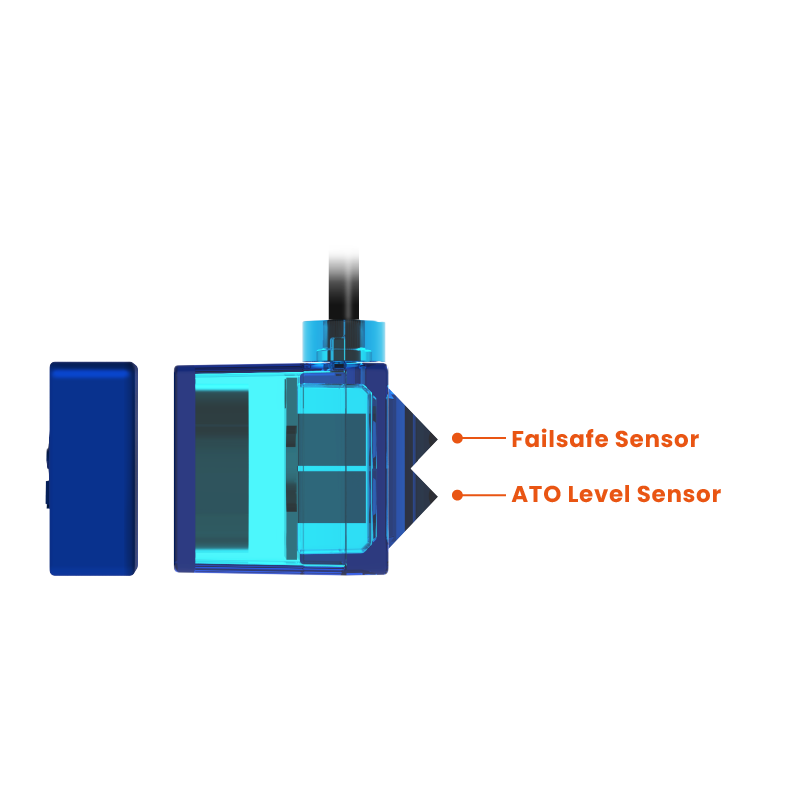

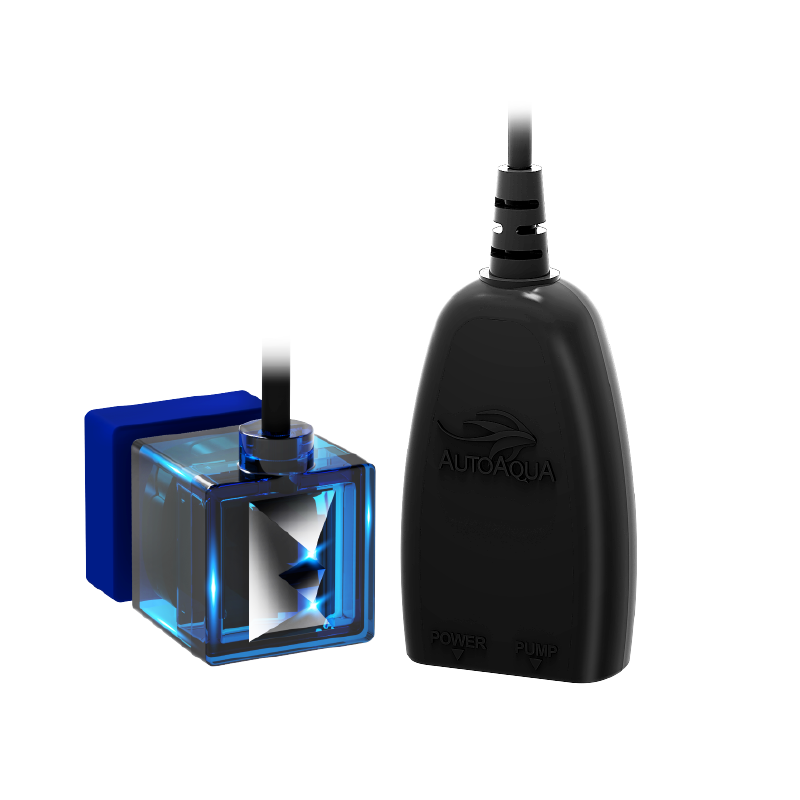

Smart ATO Lifter features with a unique combination of sensing elements, the system performs quick and intelligent auto top off. It is fitted with dual-optical level sensor, giving both visual and audible alarm when it is triggered.

Level detection is enhanced by using the patented dual optical detection technology, which significantly reduces the chances of false detection due to waterdrops. Hence, this allows it to decrease the specific failures such as overfilling and running dry of the pump.

The Smart ATO Lifter provides an effective solution for alarm signaling. Nowadays, many users are pursuing high-value automation devices. The design of Smart ATO Lifter to reach simplicity is beyond your imagination.

ATO Lifter
INCLUDED
ATO_Lifter_IN

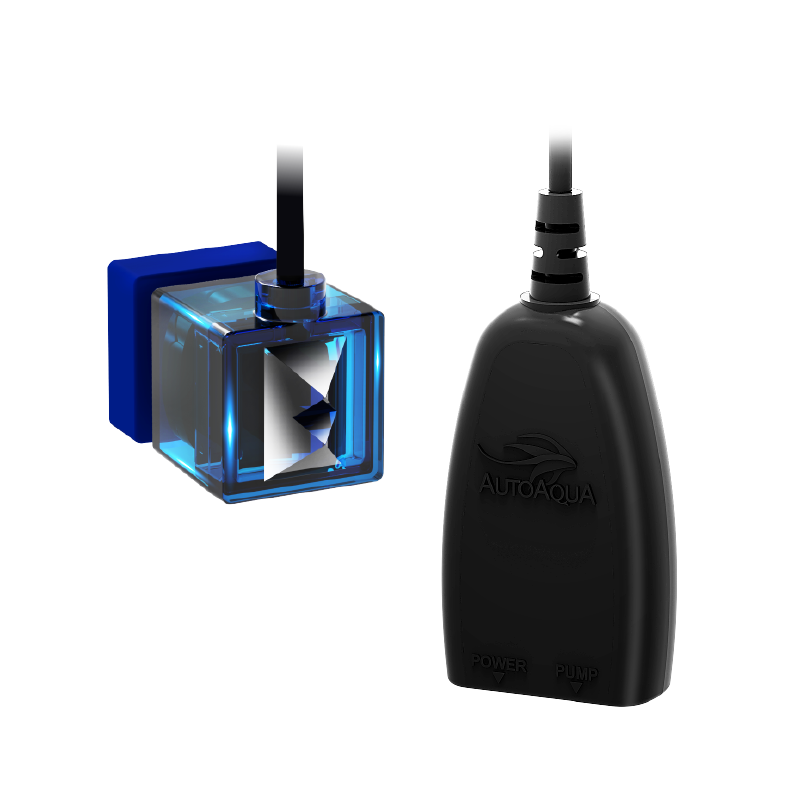

Smart ATO Lifter Controller
ATO_Lifter_IN
Universal Power Adapter
ATO_Lifter_IN

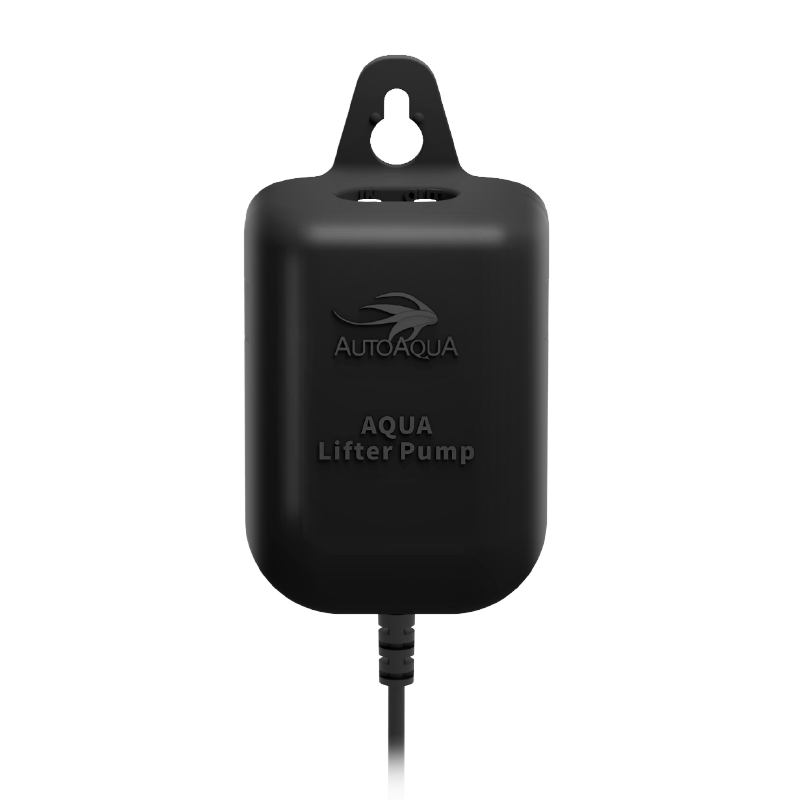

AQUA Lifter Pump
ATO_Lifter_IN

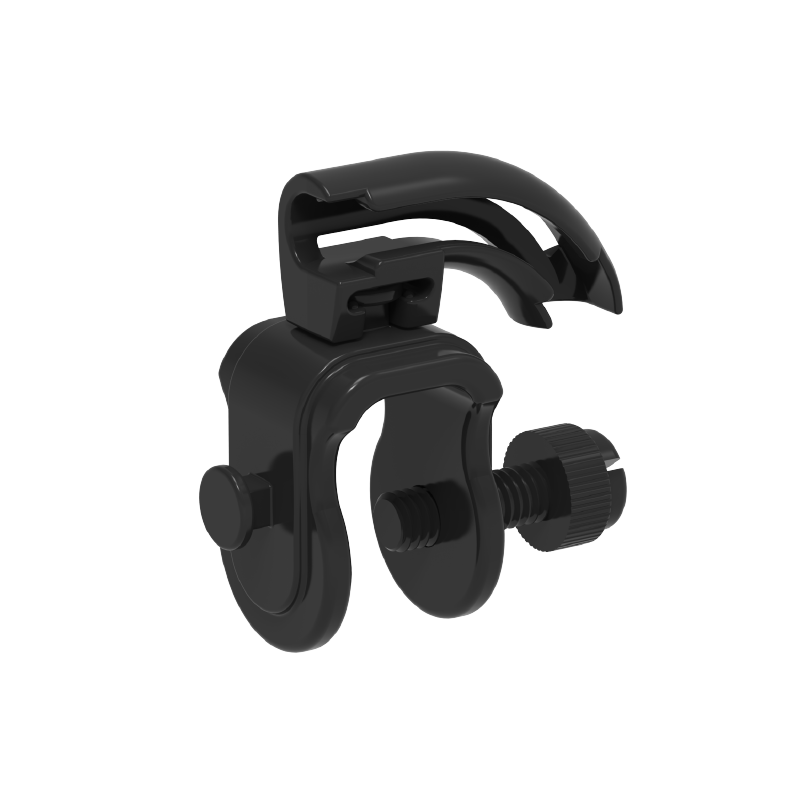

AQUA Lifter Pump Holder
ATO_Lifter_IN

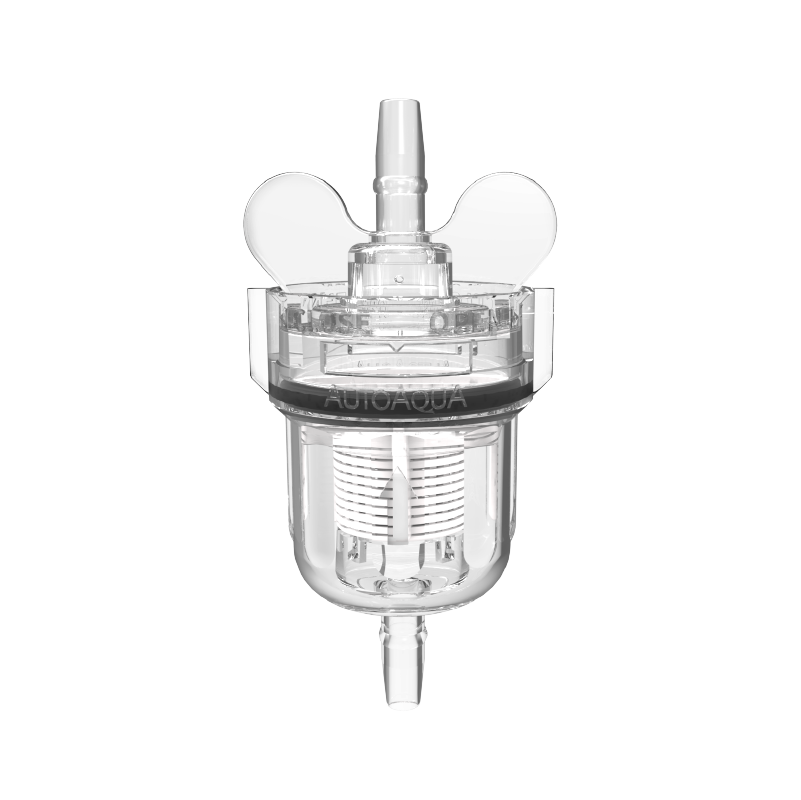

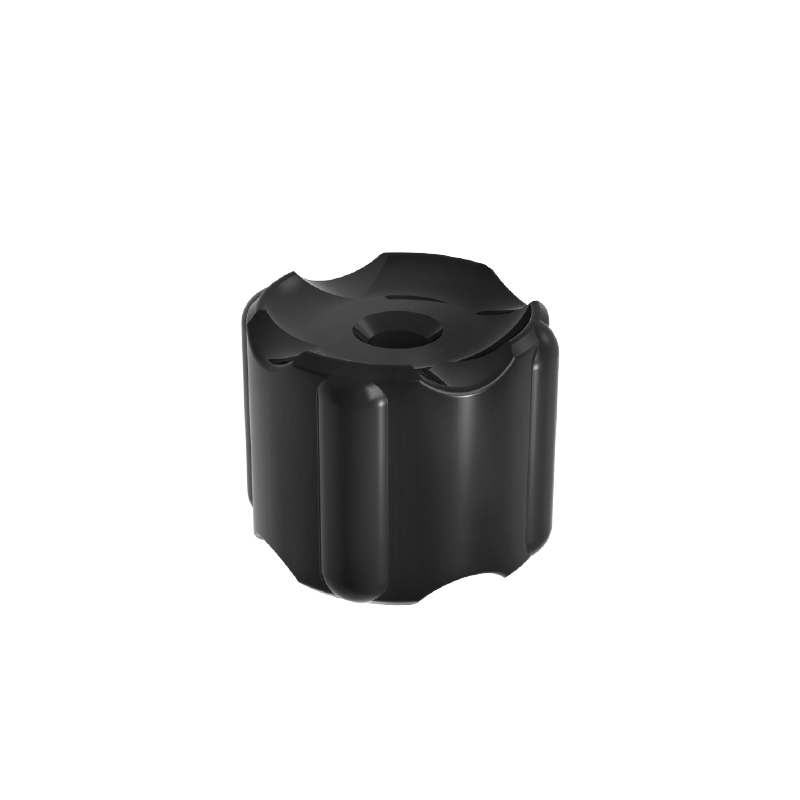

Prefilter
ATO_Lifter_IN

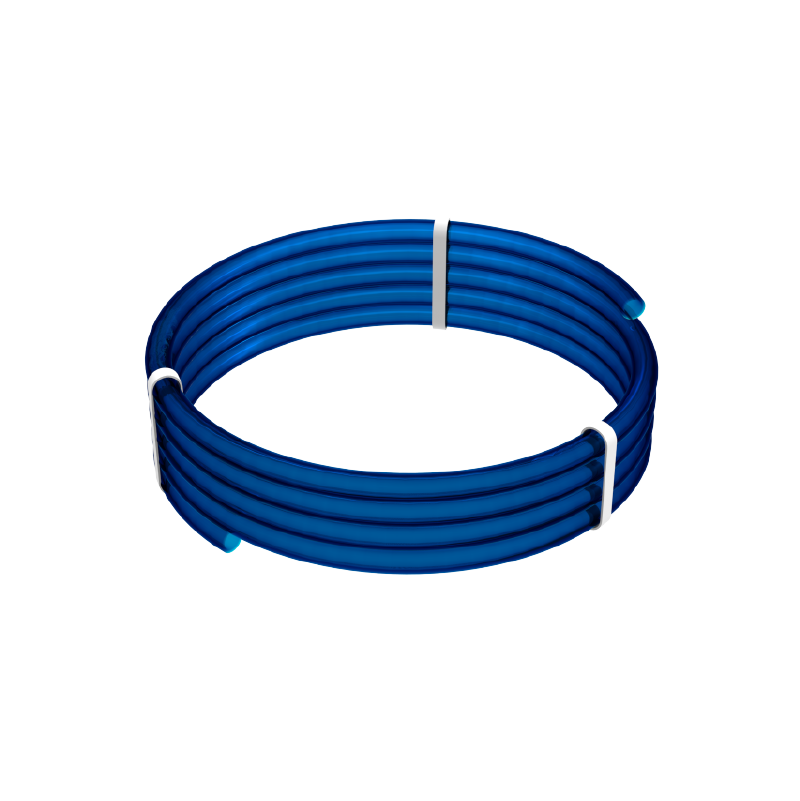

Tubing 6.5 ft (200 cm)
SPECIFICATIONS
BOX_Lifter
Smart ATO Lifter (SATO-272D)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1A
    - Power Cord Length : 6 ft (180 cm)
  • AQUA Lifter Pump (Built-in Anti-Siphon Valve) :
    - Suction Height : 6.5 ft (200 cm)
    - Max. Flow : 3.2 gph (12 lph)
    - Anti-Siphon Pressure : 1 feet (30 cm) of water. The height from water level of reservoir to tube outlet must be smaller than 1 feet (30 cm).
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - AQUA Lifter Pump Holder : 1/2 inch (12.7 mm)
  • Length of Cable between Sensor and Controller : 6 ft (180 cm)
  • Tubing :
    - Length : 6.5 feet (200 cm)
    - ID : 5/32 inch (4 mm) / OD : 1/4 inch (6.4 mm)
    - The size is same as RO Tubing, suitable for ¼-inch RO Connector

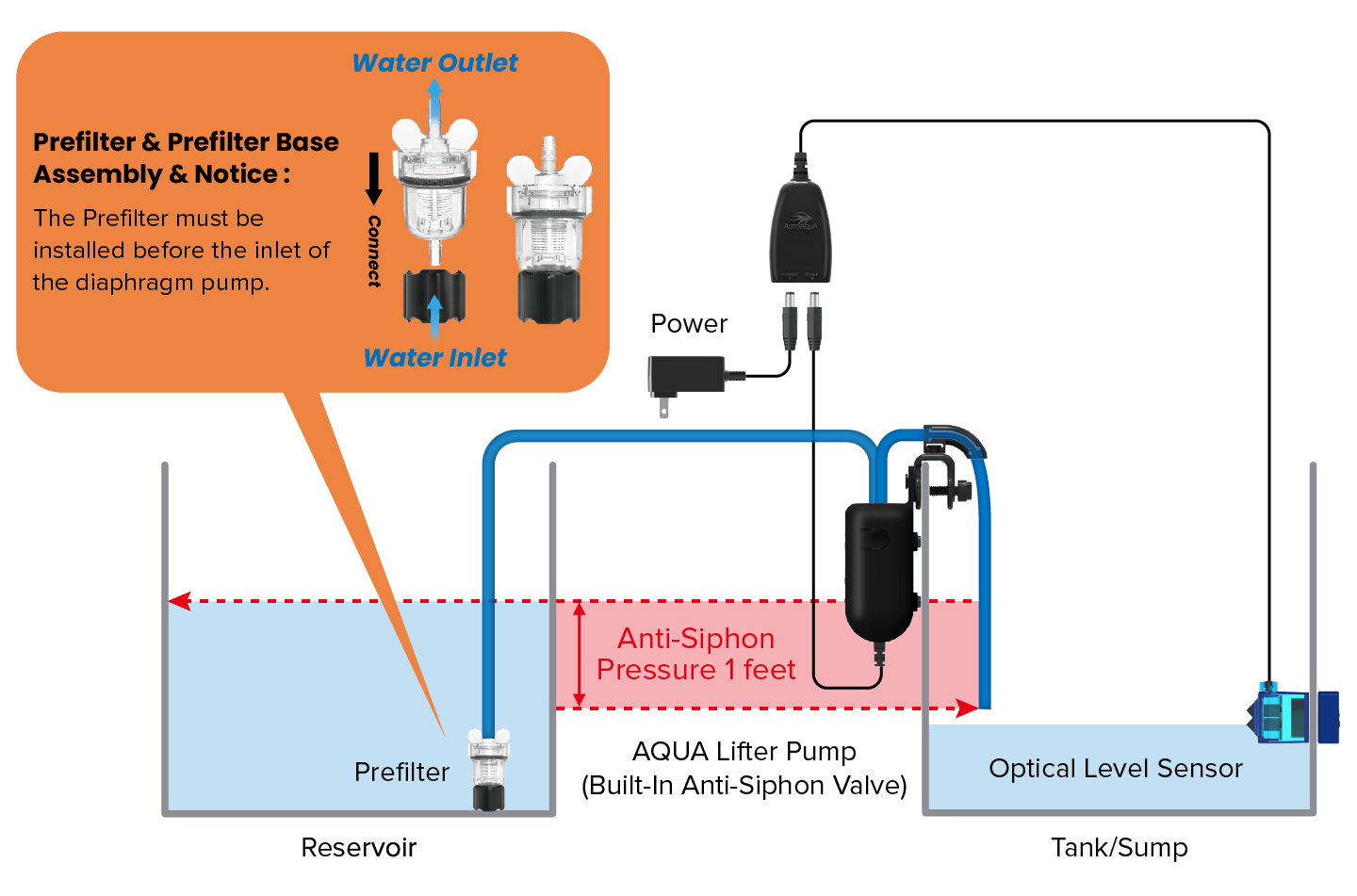

  • INSTALLATION DIAGRAM
    figure01

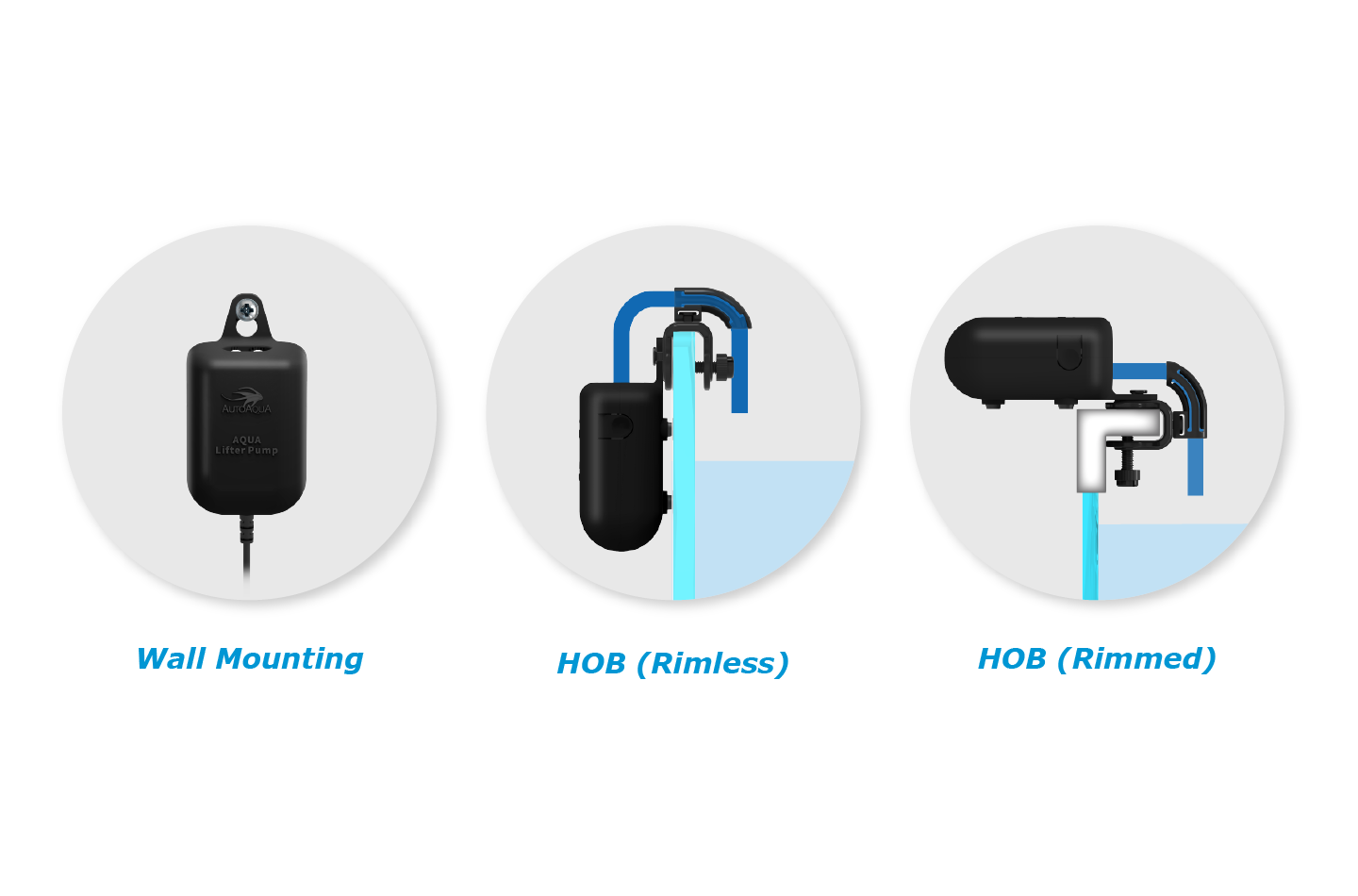

    Flexible Installation of AQUA Lifter Pump
    Versatile mounting options allow easy setup for any sizes of tanks.
    The Pump can be mounted on the wall, or be easily mounted on rimmed or rimless tanks or sumps with the uniquely-designed holder.
    figure02
