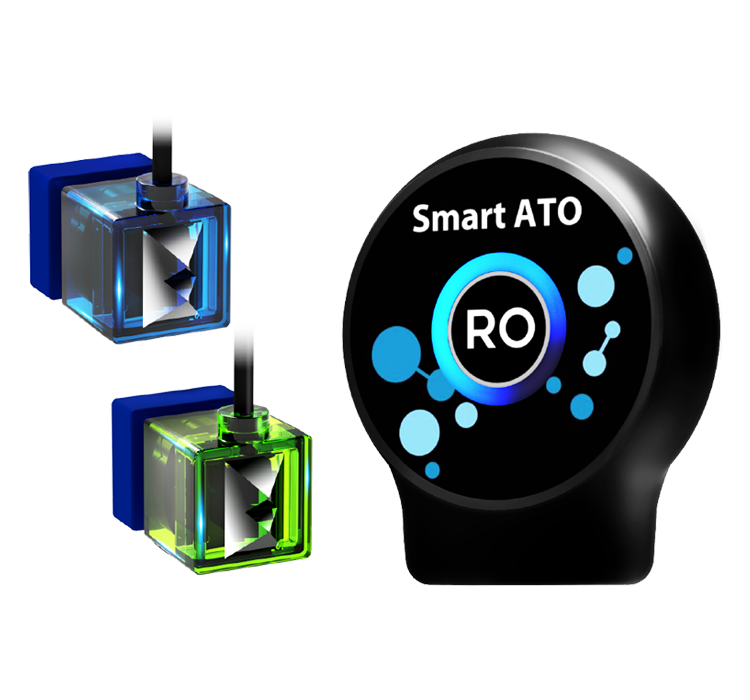

Smart ATO RO G2
Auto Top Off for RO System
SATO-466V
Smart ATO RO G2
An ATO specially designed to fill RO water reservoir from RO or RODI system automatically.
It can help turn your long water mixing task into a crisp and peace of mind workflow.
COMPACT & SIMPLE

Smart ATO RO G2 is a reliable device that can automate refilling your ATO reservoir without forgetting to turn off your RO/DI system and in risk of catastrophic floods.

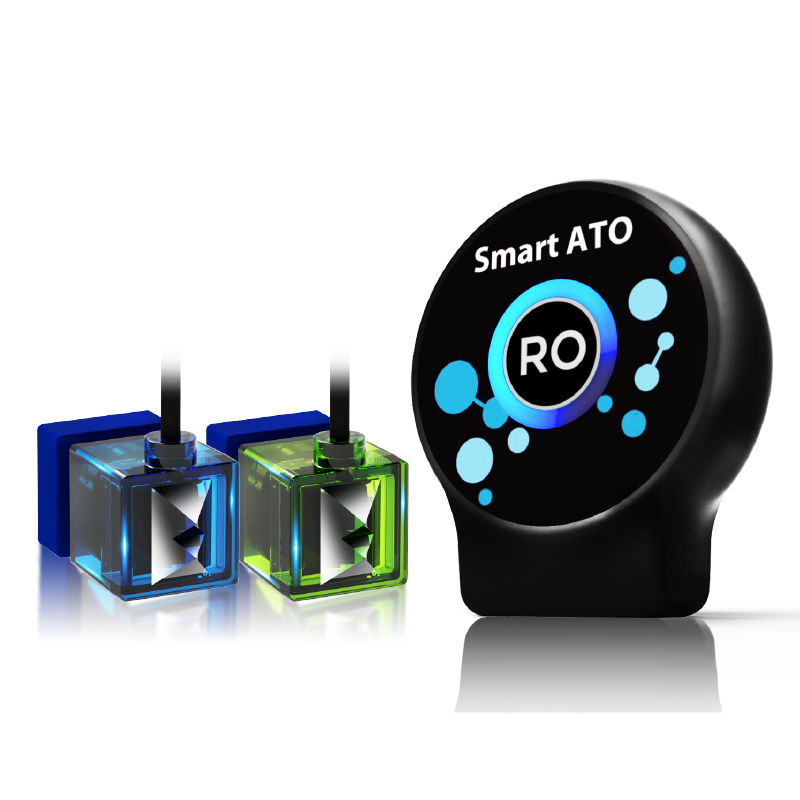

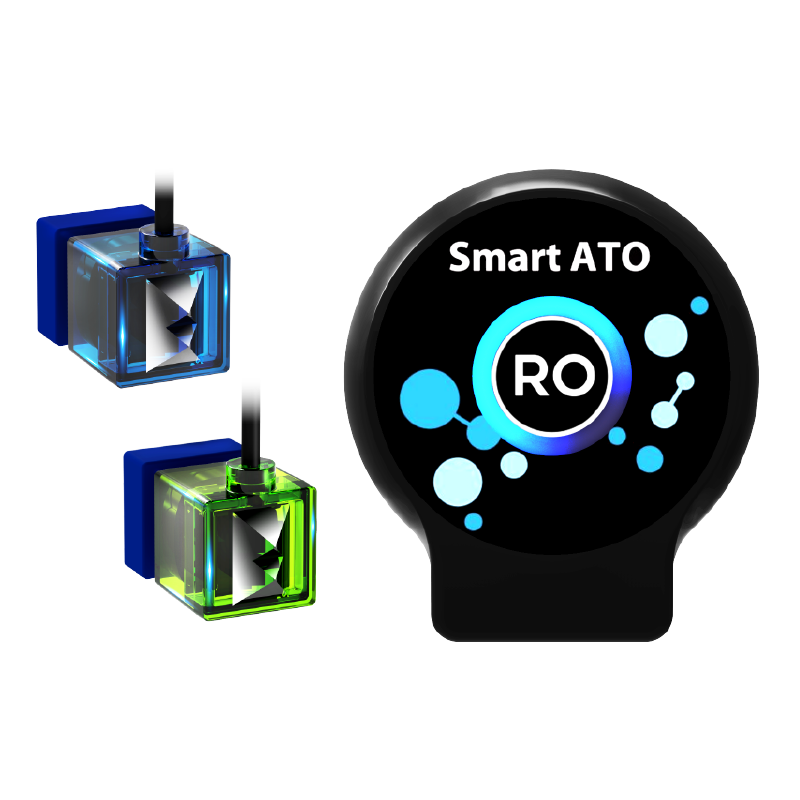

The compact design suitable for all tank sizes with magnetic-mount dual optical sensors.

Smart ATO RO G2

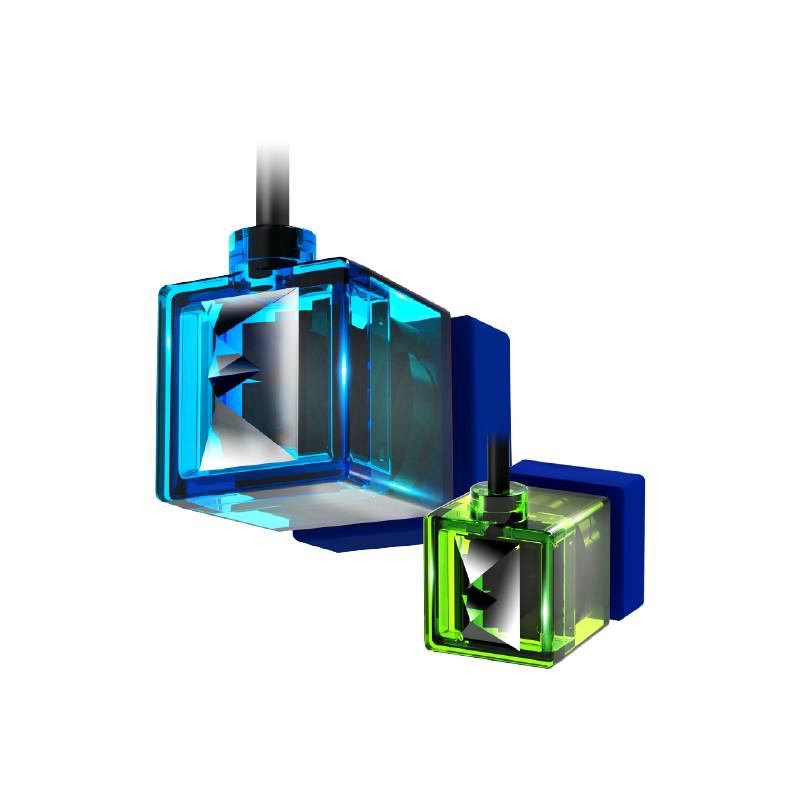

PRECISE DETECTION

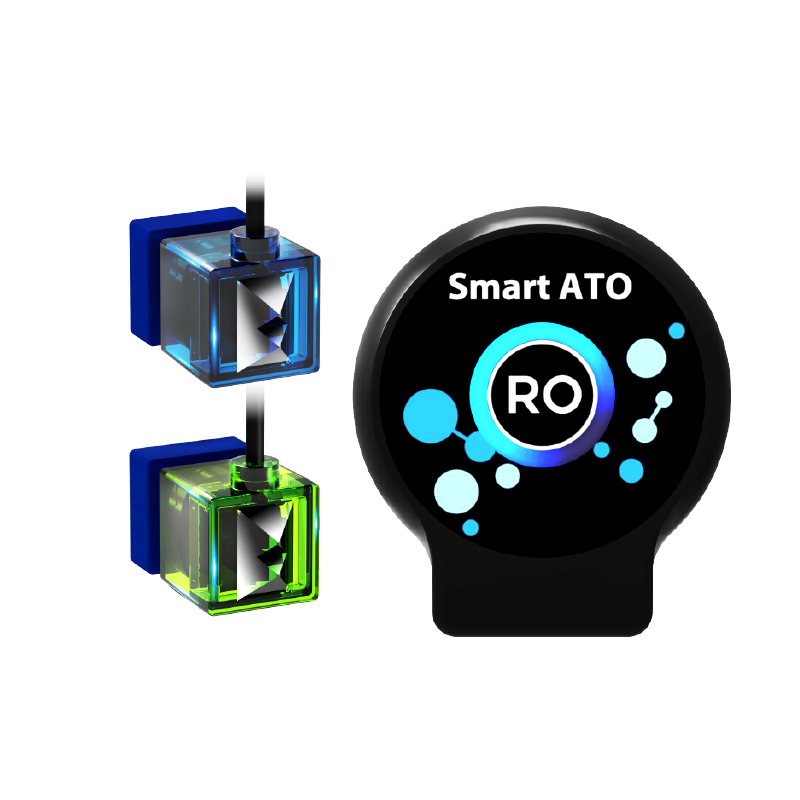

The patented dual optical sensor can detect water level precisely. If the main sensor is defective, the failsafe sensor will be a backup to prevent overfilling.
Integrated magnetic mount design allows you to set them in variety containers effortlessly with no moving parts to fail.

Smart ATO RO G2

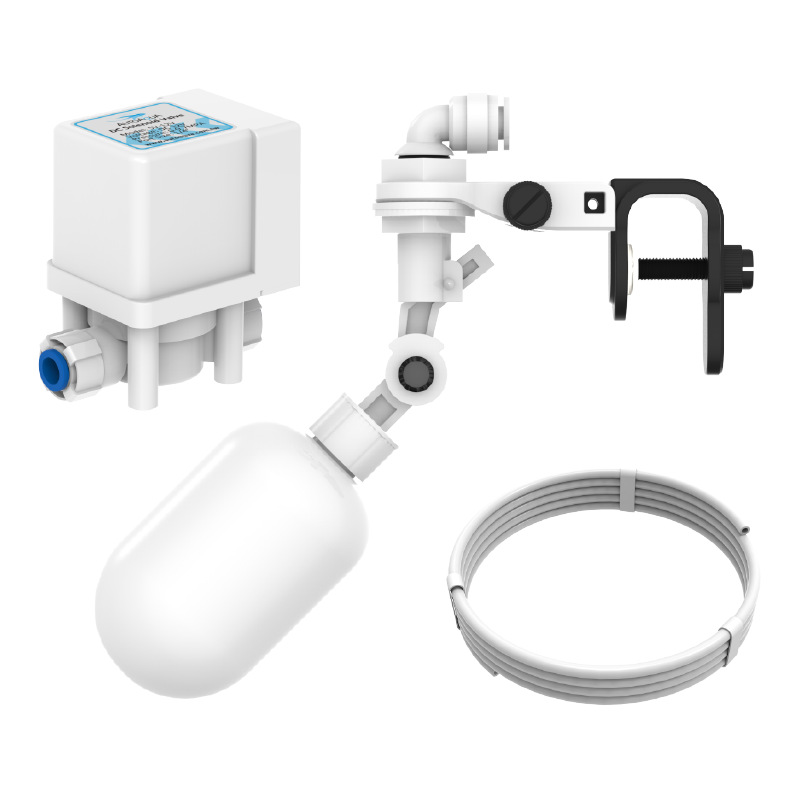

HIGH LEVEL SAFETY

Equipped with two dual sensors and a float valve kit which enhanced protection against overfilling.
With a built-in timer, the QST provides real-time failsafe protection to prevent any failure situation along with audible and LED Indicator alarm.

Smart ATO RO G2

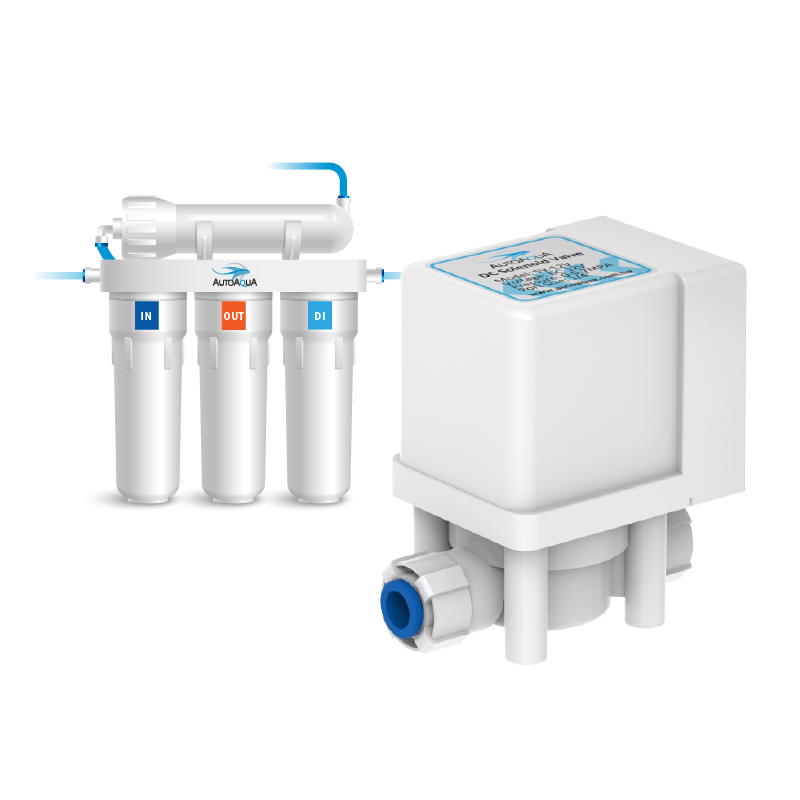

AVOID TDS CREEP

The Smart ATO RO G2 with super convenient installation by connecting your RO/DI systems to water storage directly.
Long run-time ensures purified RO/DI water for your aquariums and not only avoids TDS Creep but also save your resin!

Smart ATO RO G2
WATER RESISTANT DESIGN

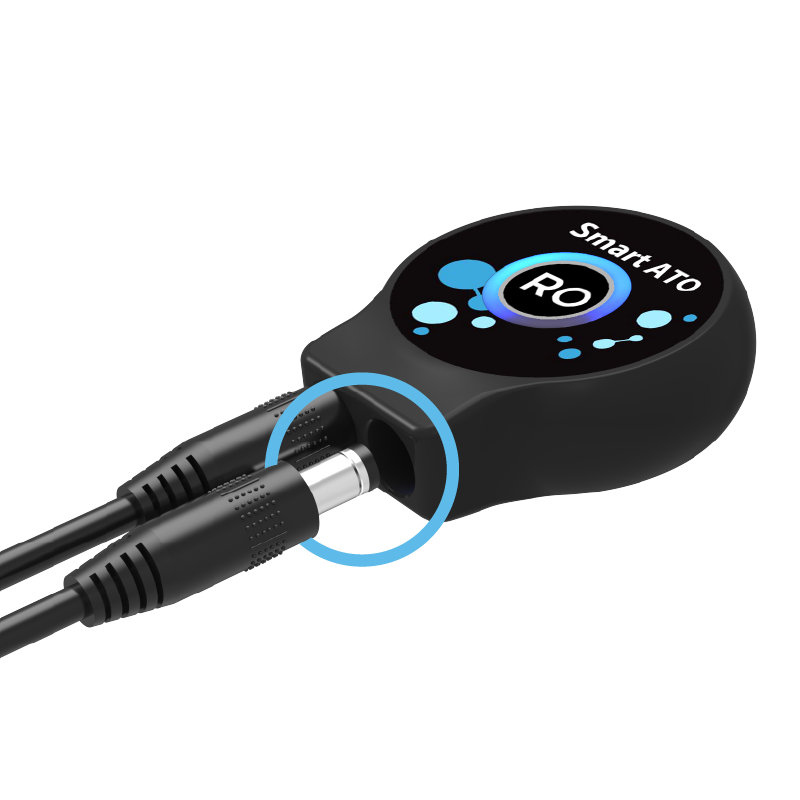

The special design of the Smart ATO RO G2 can prevent the connector of the pump and the power adapter from being rusted or damaged due to water and ensure users safety and longer product lifetime.

Smart ATO RO G2
RELIABLE & DURABLE

Everything are included in the package to set up the system in a moment. High quality and durable components provide high reliability.

Smart ATO RO G2
Making Your Life Easier

Smart ATO RO G2 is a perfect solution to fill your RO or RO/DI water reservoir automatically.

The system includes an automatic shutdown feature, controlled via a controller and two magnetic-mount dual optical sensors, to prevent overfilling and never have to worry about catastrophic floods as forgetting to turn off your RO/DI system.

Adding an Smart ATO RO G2 with your water storage will give you RODI water on hand all the time, ensuring you always get clear RO or RO/DI water for your aquariums, and helps you avoid TDS creep in the reservoir.

Smart ATO RO G2
INCLUDED
Smart ATO RO G2

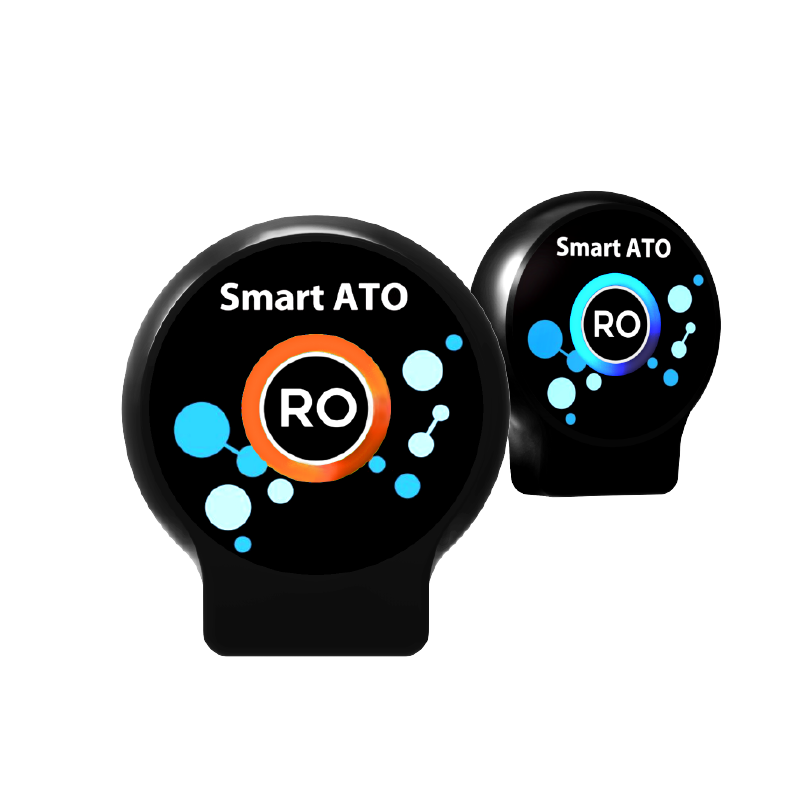

Smart ATO RO G2 Controller
Smart ATO RO G2

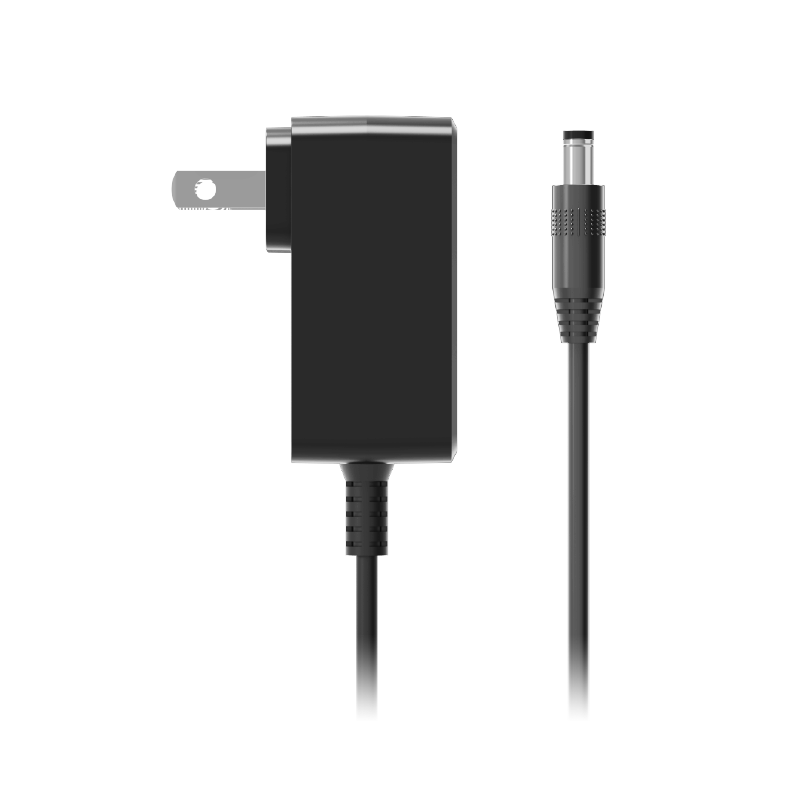

Universal Power Adapter
Smart ATO RO G2

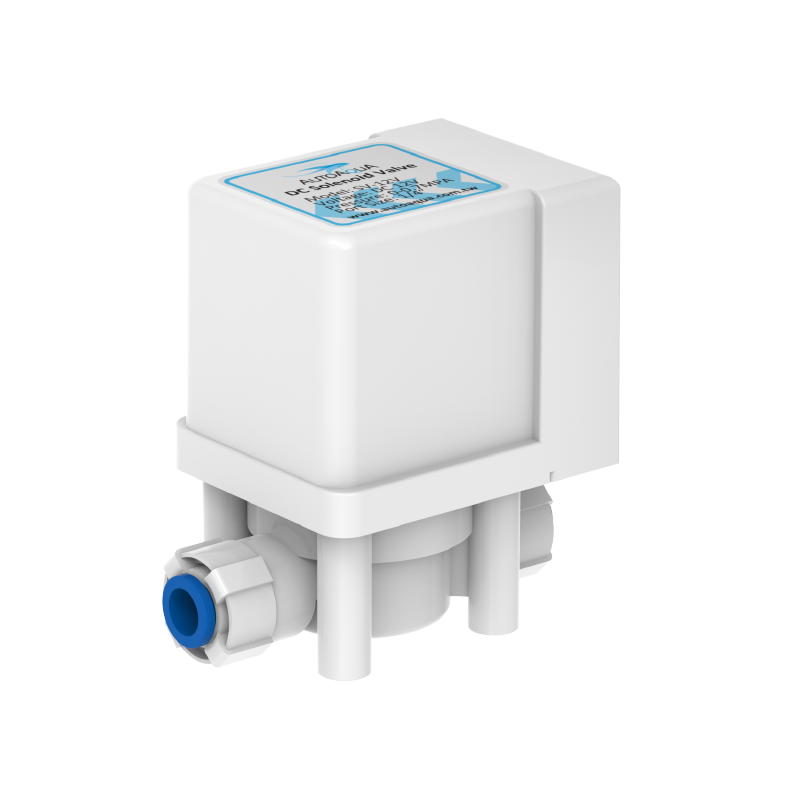

DC Solenoid Valve
Smart ATO RO G2

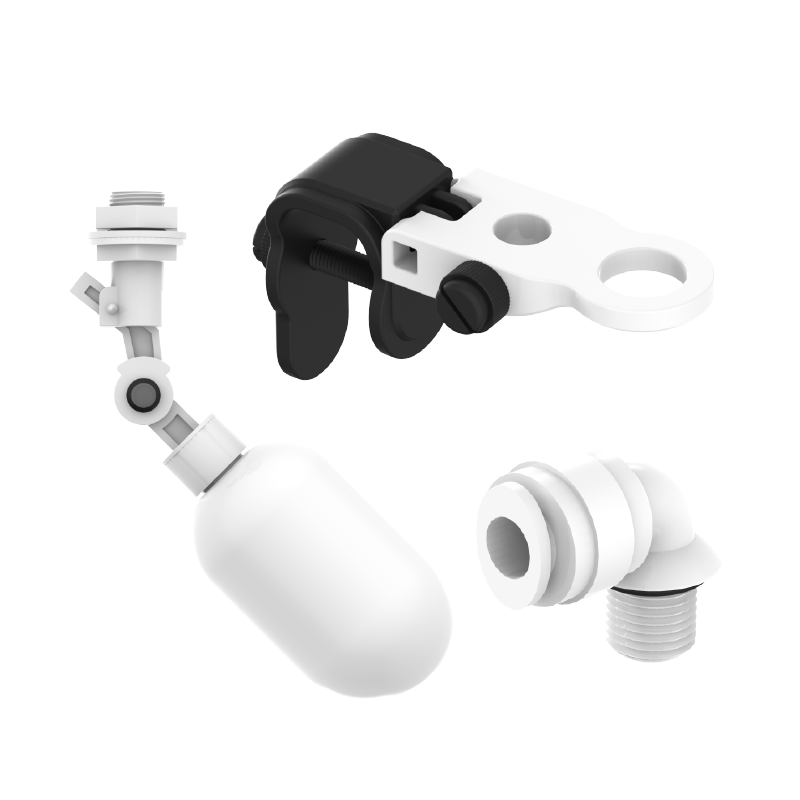

Float Valve Kit
Smart ATO RO G2

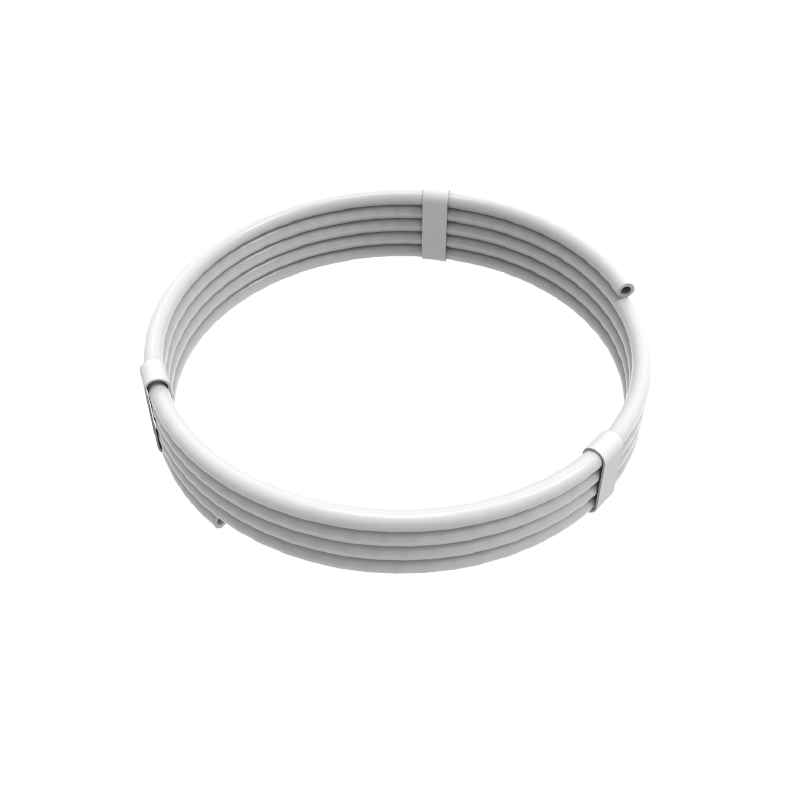

1/4-inch RO Tubing
9.8 feet (300 cm)
SPECIFICATIONS
BOX_Smart ATO RO G2
Smart ATO RO G2 (SATO-466V)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1 A
    - Cable Length : 6 feet (180 cm)
  • DC Solenoid Valve :
    - Power : 6W @ 12 VDC
    - Pressure : 0.02-0.7MPA
    - Port : 1/4-inch RO Tubing Connection
    - Cable Length : 4 feet (120 cm)
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Universal Tube Holder : 3/4 inch (19 mm)
  • Length of Cable between Sensor and Controller : 6 feet (180cm)
  • Tubing :
    - Length : 9.8 feet (300 cm)
    - 1/4-inch RO Tubing

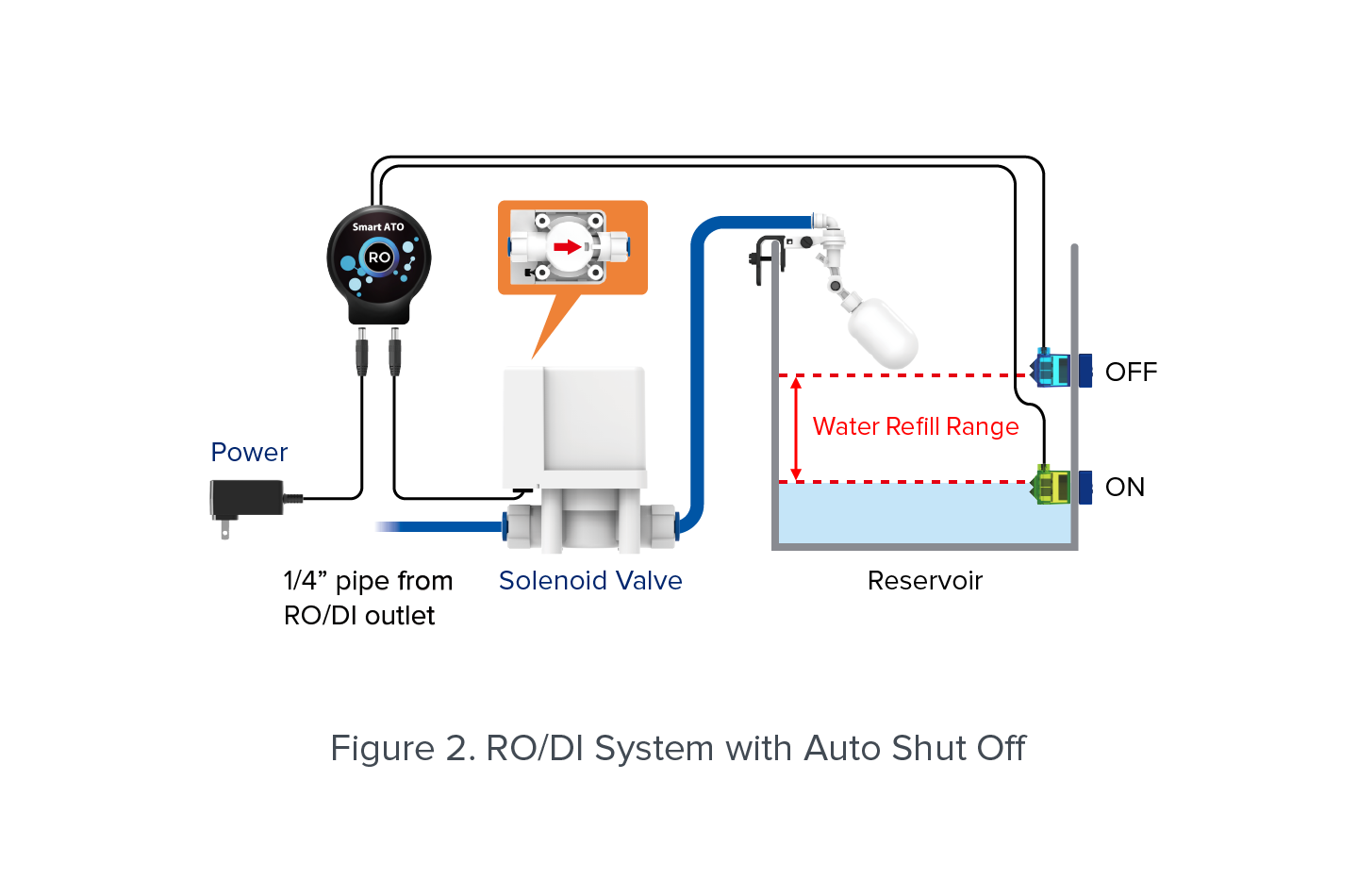

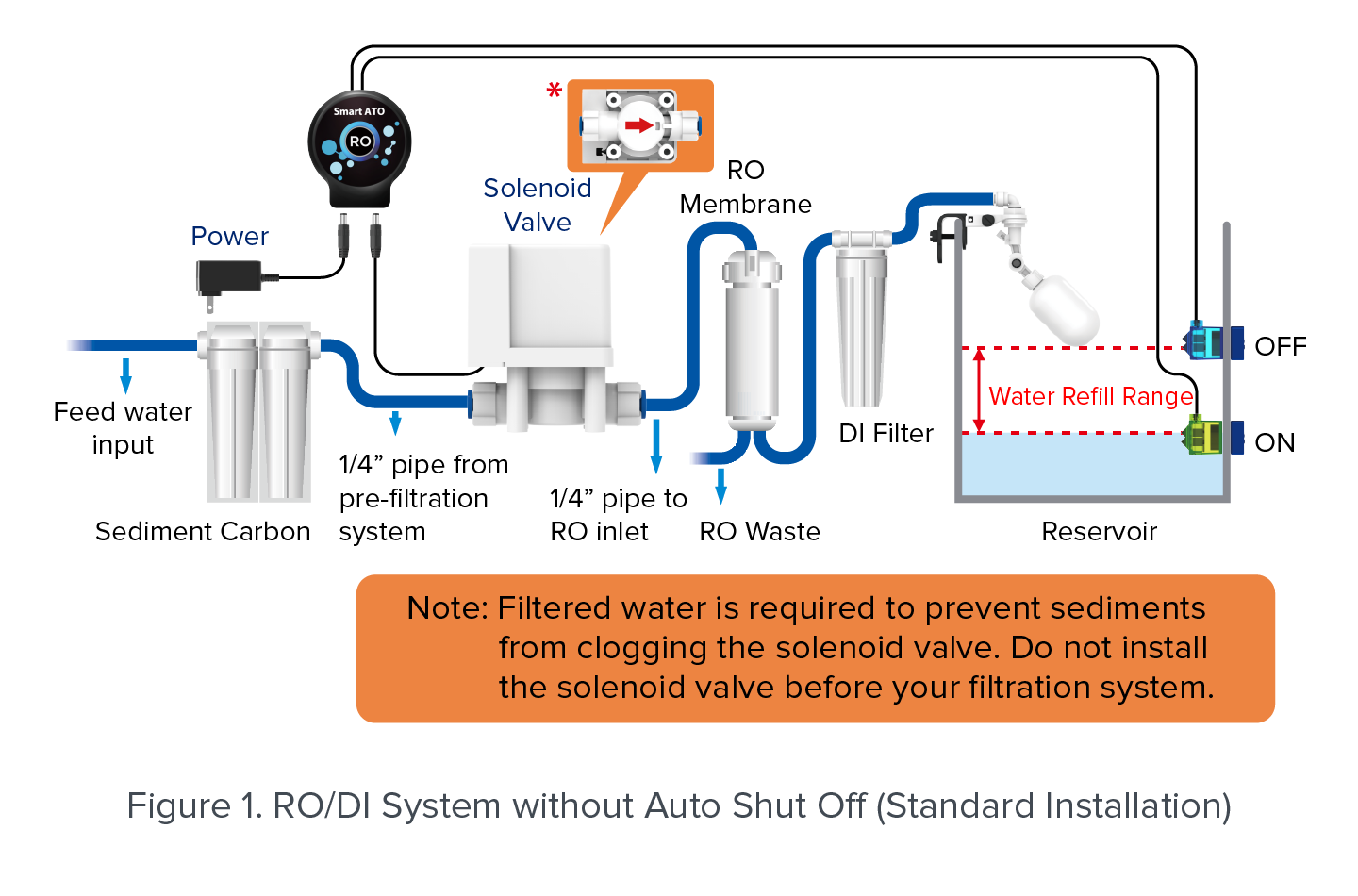

  • INSTALLATION DIAGRAM
    figure01 figure02
