Smart ATO Lite G2
Ultra High-Performance Sensor for Auto Top Off
SATO-266P
Smart ATO Lite G2
International Model, ONLY available in Asia and Australia.
No warranty or support will be provided if purchased in the USA, Canada, Mexico, or Europe.
With its square optical dual-sensor which provides precise detection of water level even at a distance of 1 mm , Smart ATO Lite G2 can automatically replenish your aquarium to maintain a consistent salinity level better than manual replenishment and save you from this annoying chore.

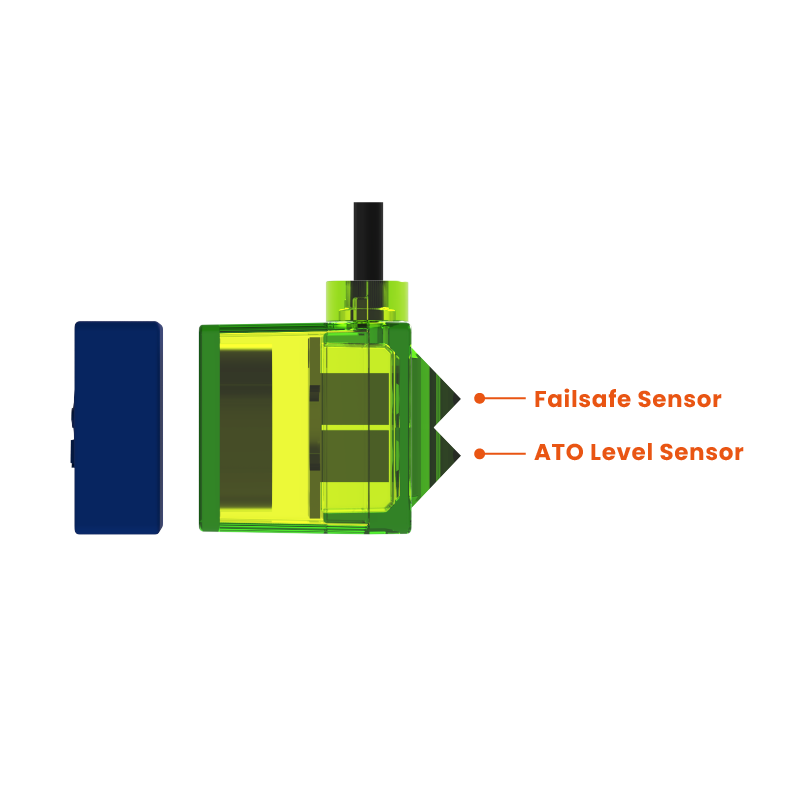

ADVANCED HIGH PERFORMANCE SENSOR

The brand new highly sensitive square dual optical sensor for the detection of the water level greatly reduces the delay, allowing hobbyist to be a step more precise at any time during auto topping-off.

SATO-266P
INTELLIGENT SECURITY TECHNOLOGY

The unique QST (Quick Security Technology) can detect sensor or pump failure and avoid overfilling instantly without any complicated settings. With the intuitive LED indicator, you can know its status at a glance.

SATO-266P
SUPERIOR EVOLUTION OF SAFETY

The patented magnetic-mount dual sensor provides not only better protection but also easier installation. It can be set at any colors of the wall and work well in complete darkness.

SATO-266P
PURSUIT OF PERFECTION

The special design of the Smart ATO Lite G2 hub can prevent the connector of the pump and the power adapter from being rusted or damaged due to water and ensure users safety and longer product lifetime.

SATO-266P
Small but Mighty

Smart ATO Lite G2 is a compact auto top off system for both nano and medium aquariums. Combined an ATO level sensor and a fail-safe sensor in one pack and integrated with QST (Quick Security Technology), which provides real-time protection against any failure and detects reservoir empty, Smart ATO Lite G2 offers you a safe and economical choice of auto top off!

ATO_Lite_G2
INCLUDED
ATO_Lite_G2_IN
Smart ATO Lite G2 Controller
ATO_Lite_G2_IN
Universal Power Adapter
ATO_Lite_G2_IN
DC Pump
ATO_Lite_G2_IN
Universal Tube Holder
ATO_Lite_G2_IN
Siphon Break
ATO_Lite_G2_IN
Tubing 6.5 ft (200 cm)
SPECIFICATIONS
Smart ATO Lite
Smart ATO Lite G2 (SATO-266P)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1 A
    - Power Cord Length : 6 ft (180 cm)
  • DC Pump :
    - Max. Head : 8.2 feet (250 cm)
    - Max. Flow : 74 gph (280 lph)
    - Pump Cord Length : 6 feet (180 cm)
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Universal Tube Holder : 1/2 inch (12.7 mm)
  • Length of Cable between Sensor and Controller : 4 feet (120 cm)
  • Tubing :
    - Length : 6.5 feet (200 cm)
    - ID : 6.5 mm / OD : 9.0 mm
  • INSTALLATION DIAGRAM
    figure01
    *Please avoid setting up the sensor in an area with micro bubbles or direct light.
