Smart AWC Lite
Safe, Smooth, Accurate
SAWC-470D
AWC

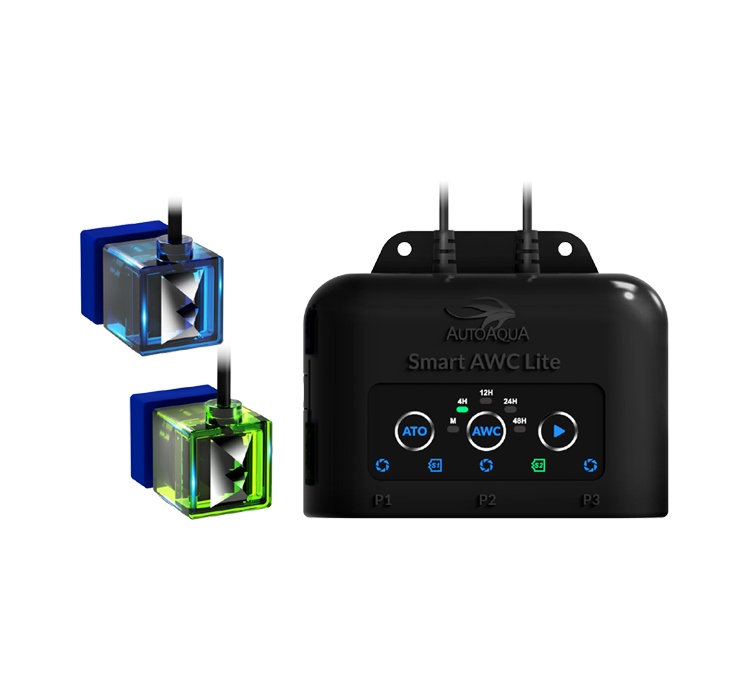

Innovative 2 in 1 Auto-Top-Off and Auto-Water-Change system achieves the aims of automatic tank maintenance. With precise and smooth DC Diaphragm pump, Smart AWC Lite is the ideal for any aquariums under 150 gallons.
INTEGRATE DESIGN ● ULTRA-HIGH PERFORMANCE

All in one ATO and AWC, with patented optical dual sensor and high efficiency DC diaphragm pump, you can easily maintain your tank both hands and worry free. Turning off return pump is unnecessary during water change.

awc

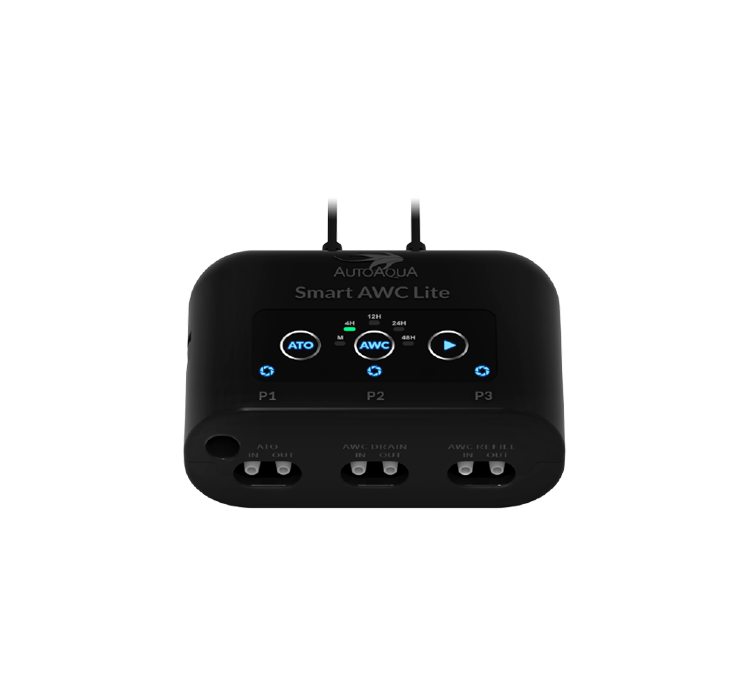

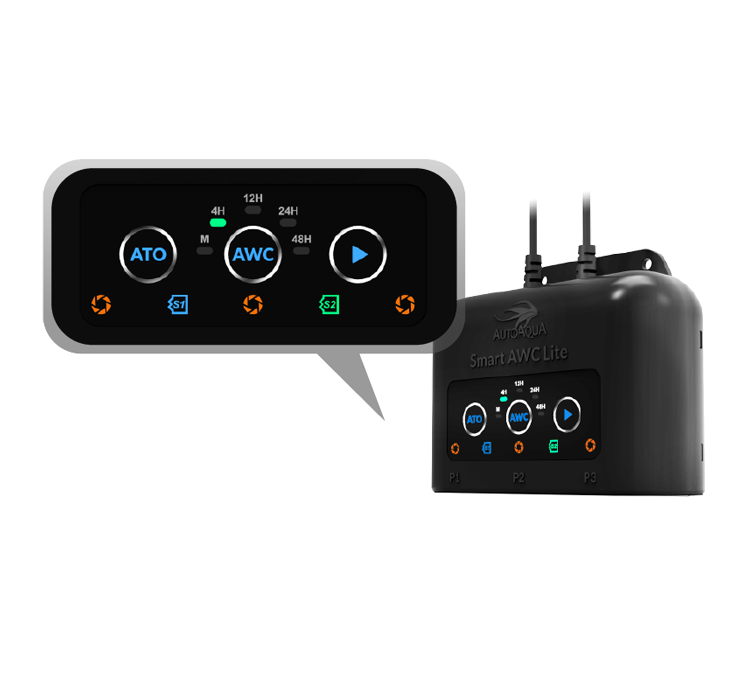

INTUITIVE INTERFACE ● SMART OPERATION

Designed for simplifying the routine of remove and replenish aquarium water.

Features with intuitive interface with LED indicators and 5 pre-time setting, each status can been seen at a glance without technical jargon or complex system.

AWC

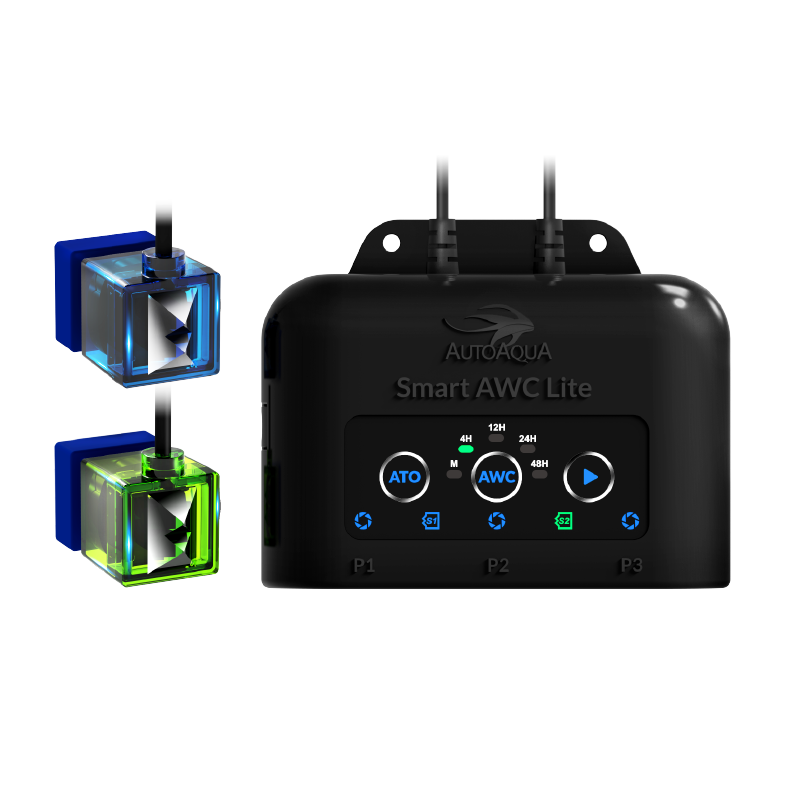

SENSE EVERYTHING ● PRECISION-ENGINEERED SENSOR

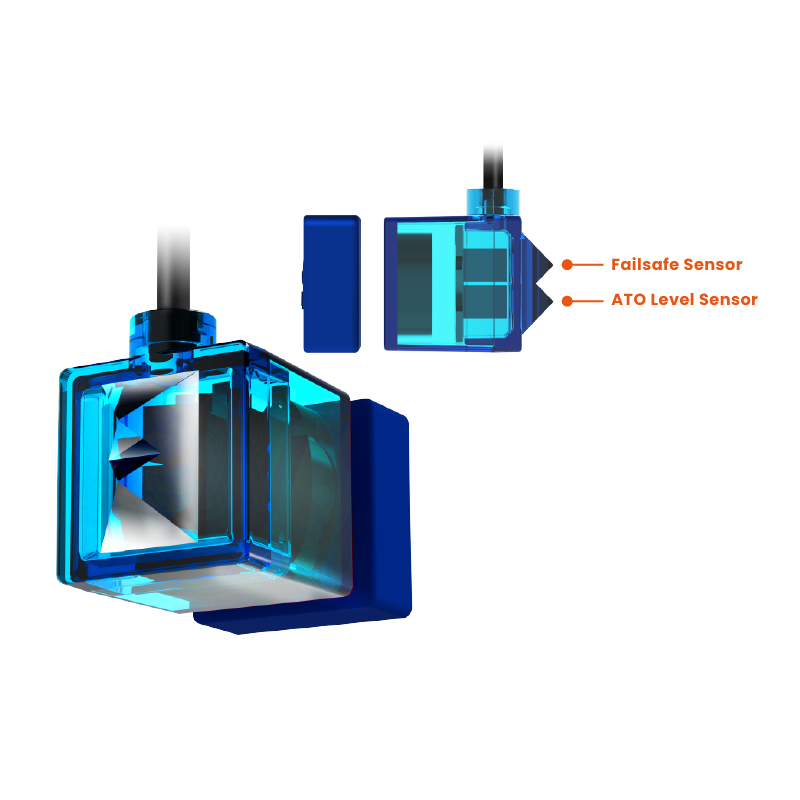

Upgraded optical sensor designed for more precise detection of water level even at a distance of 1 mm and against false detection due to water drop. Continuation of advantages in patented dual optical sensor, the failsafe sensor will be a backup and protect your tank immediately even the main sensor is failed.

awc
STRONG BUT QUIET ● PRECISE BUT SAFE

Equipped with high efficiency and consistent smooth flow, DC diaphragm pump can lessen the pressure to the aquarium system and a built-in anti-siphon valve as a safeguard against forward siphon.

Different from submersible pump, diaphragm pump has the benefits of being able to run dry without damage and no wire in the reservoir for safe and clean look aquarium.

awc
QUICK SECURITY TECHNOLOGY ● HIGH LEVEL SAFETY

With a built-in timer , the QST provides real-time failsafe protection to prevent any failure situation.

It avoids overfilling instantly and the reservoir empty, without any complicated settings. Hobbyists can fully rely and trust the safety of our automatic system and peace of mind.

awc
SUPERIOR STRUCTURE ● SIMPLEST INSTALLATION

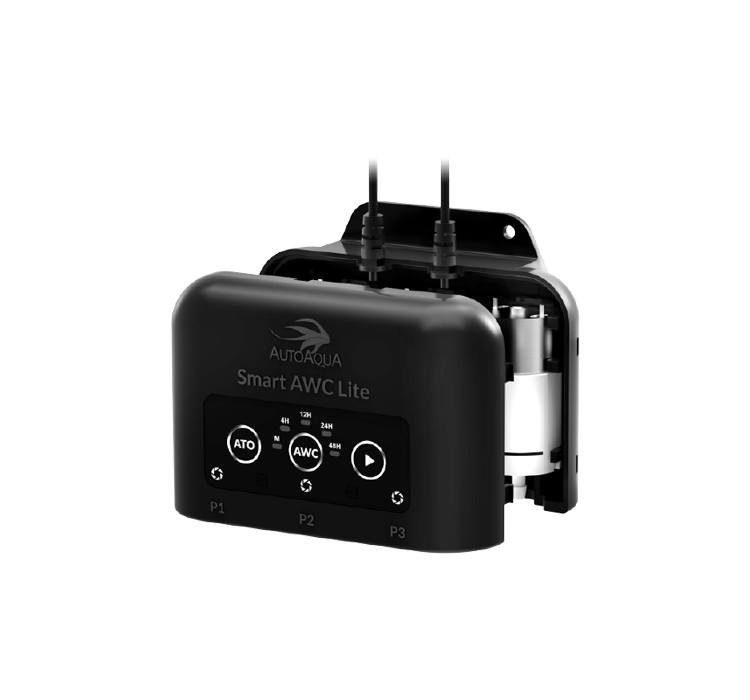

Superior structure provides easy maintenance, simple installation, and high durability performance. With unique release button, you can replace the pump with toolless and screw free!

AWC

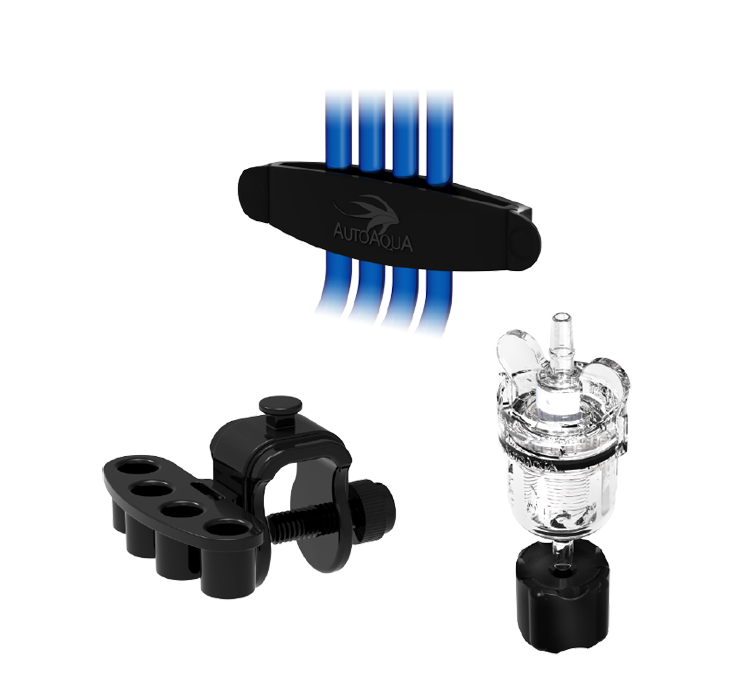

DETAIL-ORIENTED ● All-INCLUSIVE

The exclusive & ingenious accessories and plug-and-play design will be an open sesame to tidy clean aquarium and build you aquarium to your needs.

awc
The Ideal Combination of Breakthrough Innovation & Unexpected Smooth Flow

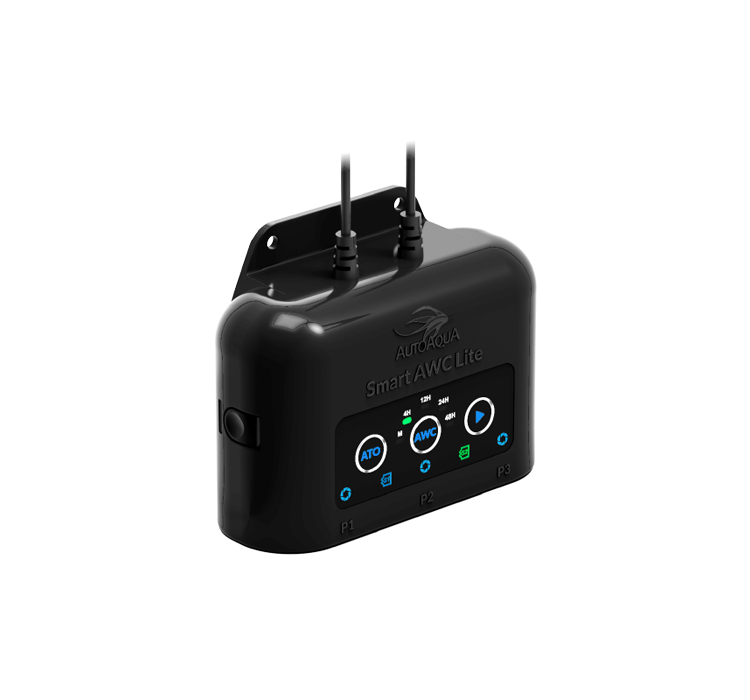

Smart AWC Lite is a pioneer in automatic water change which integrated with diaphragm pump into controller.

Its high efficient diaphragm pump and patented dual-optical sensor let you blitz through the most demanding tasks faster and easier than ever before. No more lugging buckets and jugs!

AWC
INCLUDED
Smart AWC Lite Controller
Smart AWC Lite Controller
Universal Power Adapter
Universal Power Adapter

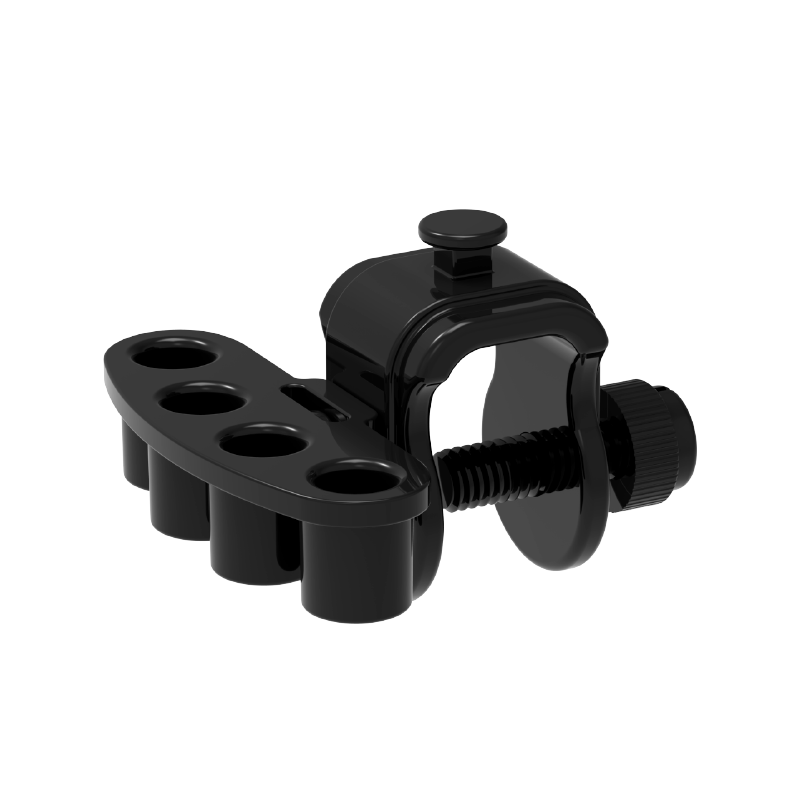

Quad Tube Holder
Quad Tube Holder

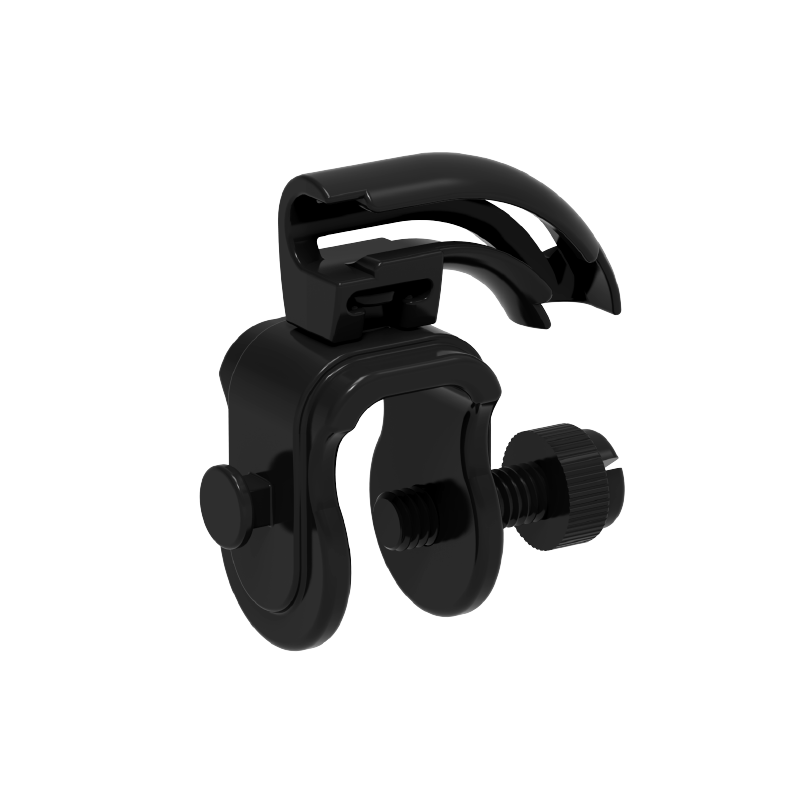

AQUA Lifter Pump Holder
AQUA Lifter Pump Holder

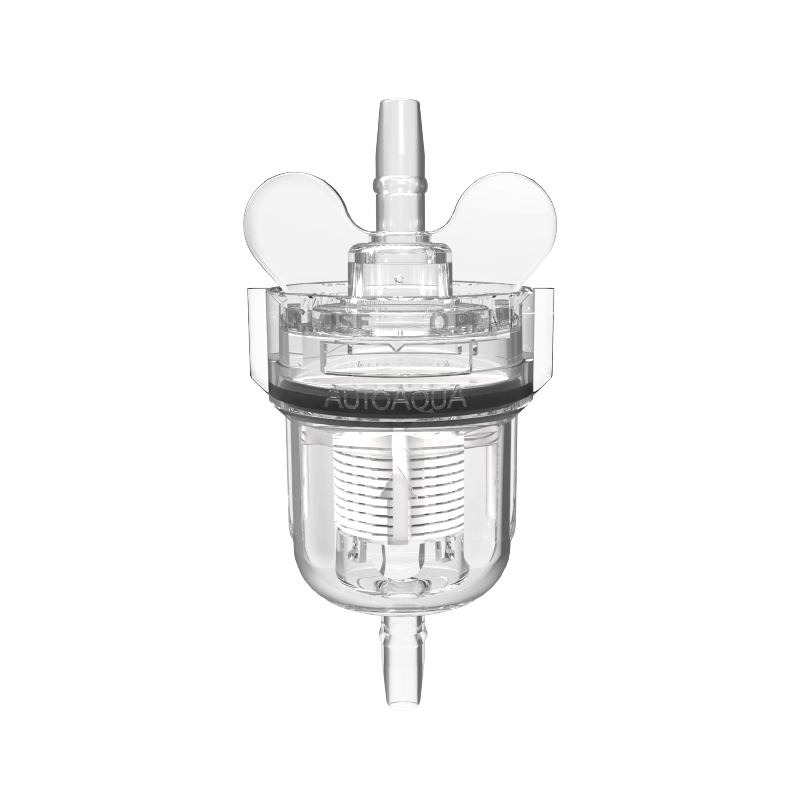

Prefilter
Prefilter
Prefilter Base
Prefilter Base

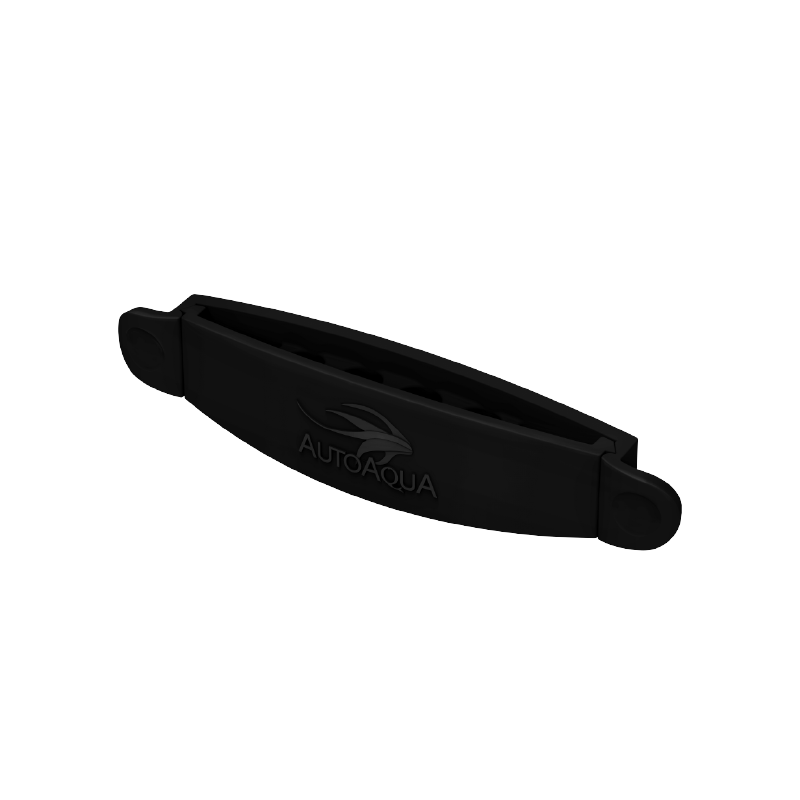

Tube Clip
Tube Clip

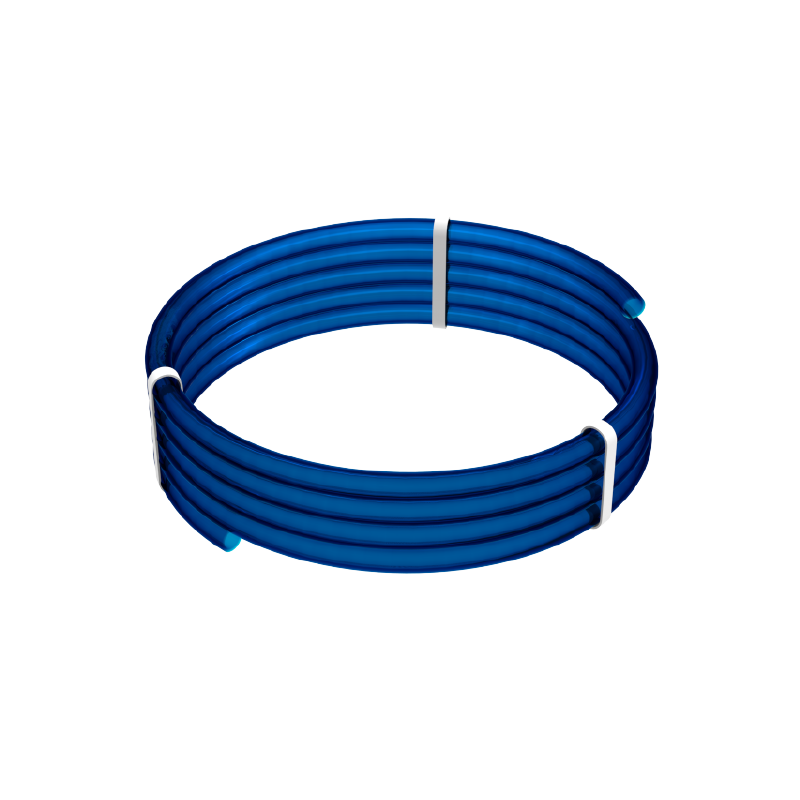

Tubing 6.5 ft (200 cm)
Tubing : 19.6 ft (600 cm)
SPECIFICATIONS
AWC
Smart AWC Lite (SAWC-470D)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1A
    - Power Cord Length : 6 ft (180 cm)
  • DC Diaphragm Pump (Built-in Anti-Siphon Valve) :
    - Suction Height : 6.5 ft (200 cm)
    - Max. Flow : 3.2 gph (12 lph)
    - Anti-Siphon Pressure : 1 feet (30 cm) of water. The height from water level of reservoir to tube outlet must be smaller than 1 feet (30 cm).
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Quad Tube Holder : 1/2 inch (12.7 mm)
    - AQUA Lifter Pump Holder : 1/2 inch (12.7 mm)
  • Length of Cable between Sensor and Controller : 9.8 ft (300 cm)
  • Tubing :
    - Length : 19.6 feet (600 cm)
    - ID : 5/32 inch (4 mm) / OD : 1/4 inch (6.4 mm)
    - The size is same as RO Tubing, suitable for ¼-inch RO Connector

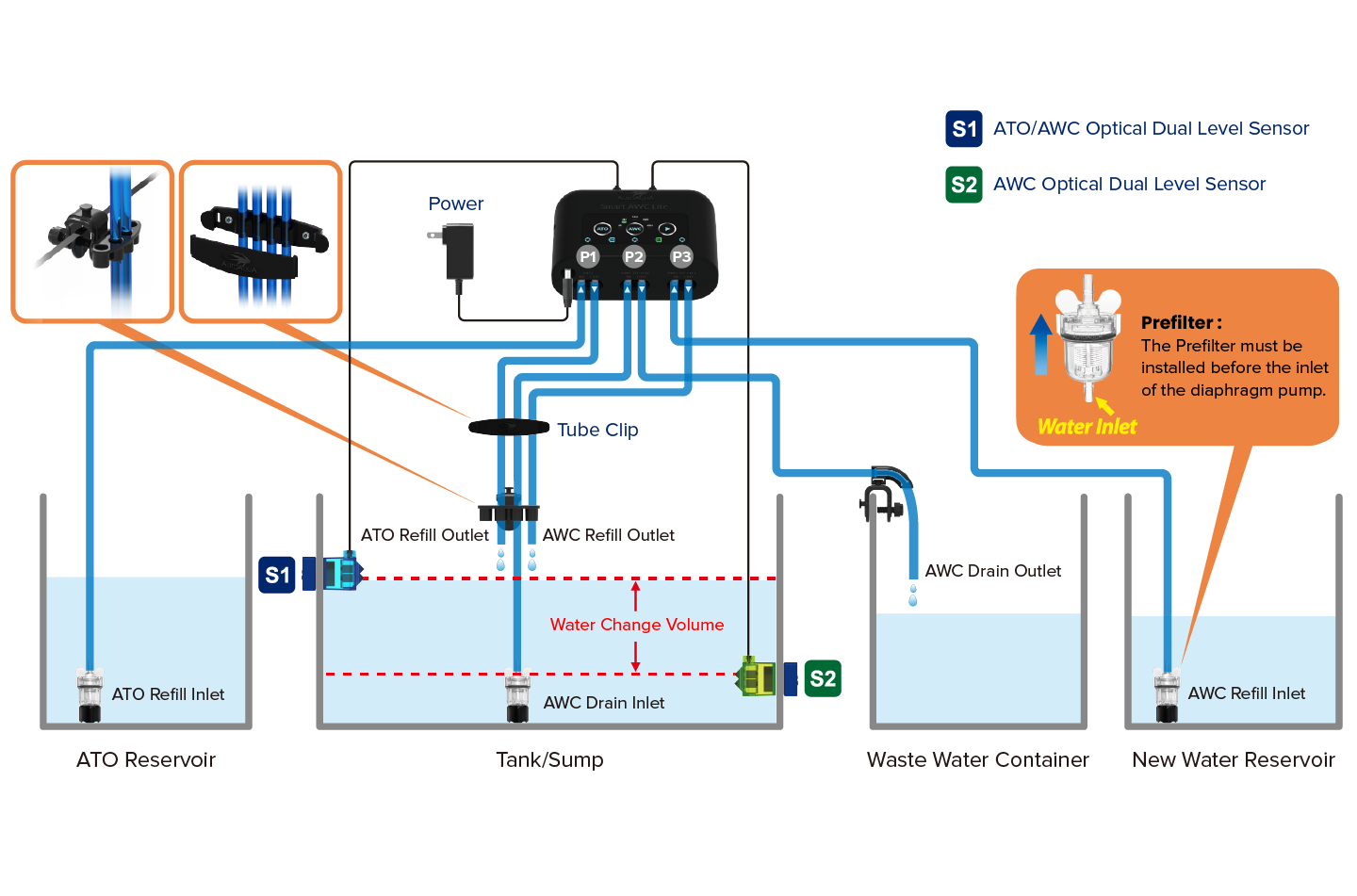

  • INSTALLATION DIAGRAM
    figure01
