Smart ATO nano
HOB Auto Top Off
SATO-270D
ATO nano

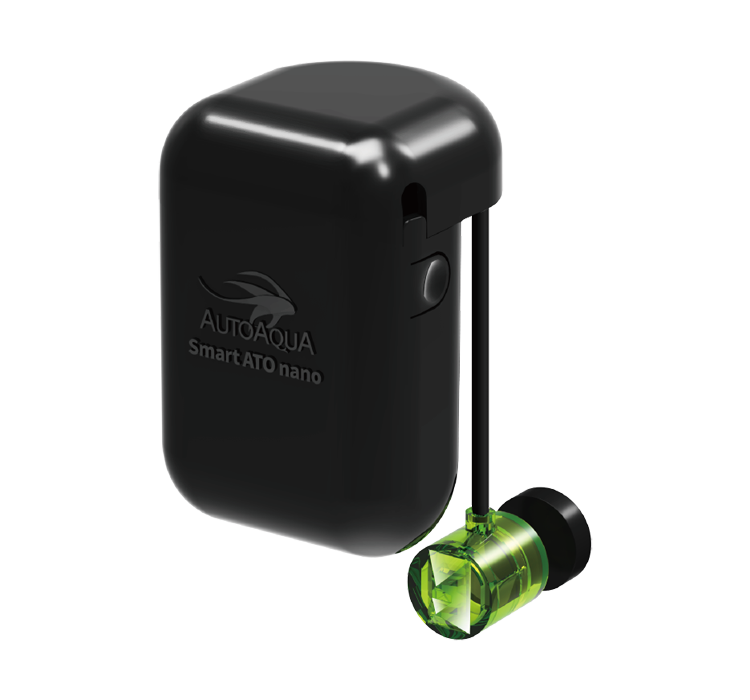

An unique HOB (Hang-on-Back) ATO integrated with one optical dual sensor and one replaceable diaphragm pump, which is ideal for nano and pico aquariums under 50 gallons.
ALL-IN-ONE & COMPACT

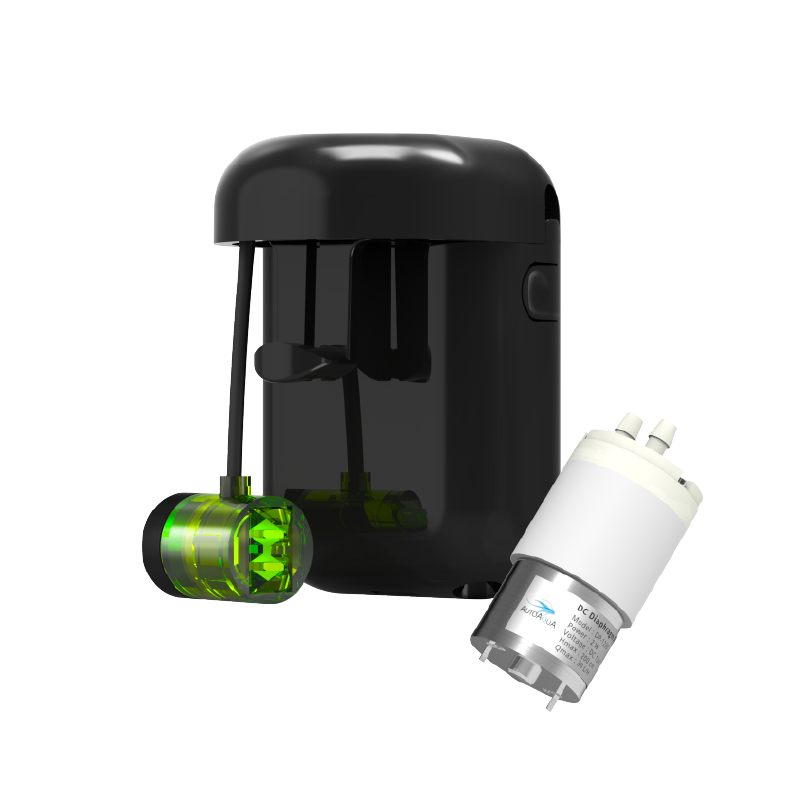

Integrated with one Dual Sensor and one Diaphragm Pump, it is extremely easy to install Smart ATO nano on your aquarium— hang it on the wall of the tank / sump, connect tubing, and plug in the power.

ATO_nano
INTELLIGENT SECURITY TECHNOLOGY

The unique QST (Quick Security Technology) can detect sensor or pump failure and avoid overfilling instantly without any complicated settings. With the intuitive LED indicator, you can know its status at a glance.

ATO_nano
QUICK DISASSEMBLY
WITHOUT ANY SCREWS

The toolless design allows you to assemble and disassemble it in a minute. No screws means there is no risk of pollution caused by rust in your tank!

ATO_nano
SIMPLE & MULTIPLE
POSITION INSTALLATION

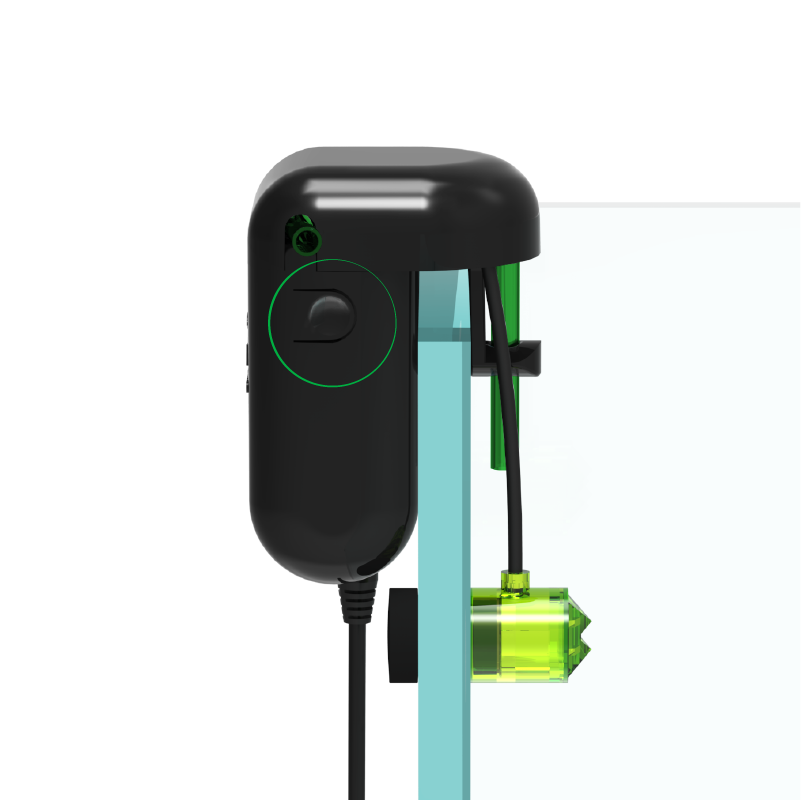

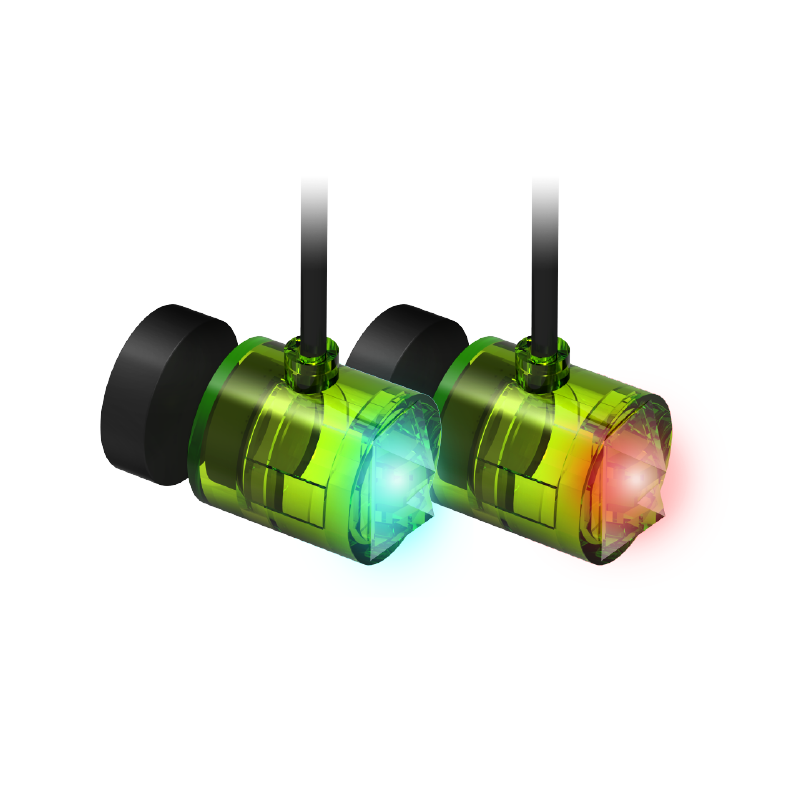

‘Hang-On Back’ design is more convenient and flexible for rimmed and rimless tank/sump. The easy-to-install magnetic dual sensor can be positioned at any desired places. Adjustable holder is fitted for 3-10 mm aquarium glass thickness.

ATO_nano
ADJUSTABLE SENSOR
CABLE LENGTH

Make your aquarium tidy with the sensor of adjustable cable length. You can hide its cable in the body and save a cable organizer.

ATO_nano
FOCUS ON EVERY DETAIL

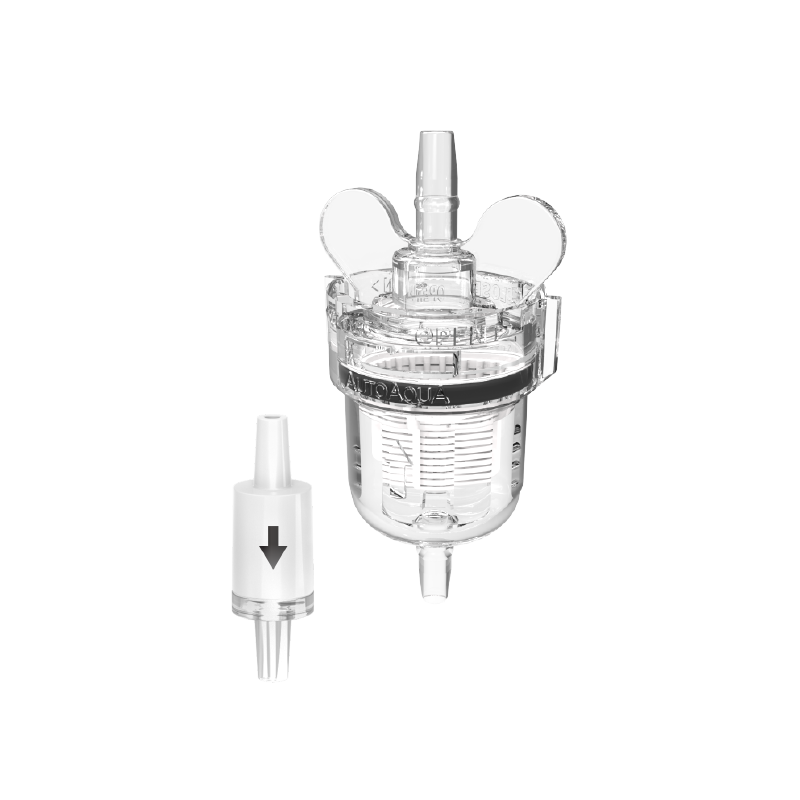

The Prefilter can remove the particles in the reservoir and protect the diaphragm pump. The Anti-Siphon Valve can stop the forward siphon.

ATO_nano
Enjoy the innovation and simplicity

For small aquariums, a stable osmotic balance is important, because they are particularly sensitive to constantly changing salt concentrations. AUTOAQUA Smart ATO nano, which is designed specifically for nano and pico aquariums under 50 gallons, is one of the best choices.

Smart ATO nano is beautifully crafted to allow simple installation and silent operation. A strong diaphragm pump and a dual optical sensor are combined in one pack, so there is no wire in the reservoir, which makes your aquarium look neat and safe! In addition, it comes with two essential but clever gadgets -- Prefilter and Anti-Siphon Valve, which can remove the particles in the reservoir, protect the pump and stop waterflow due to forward siphon.

ATO_nano
INCLUDED
ATO_nano

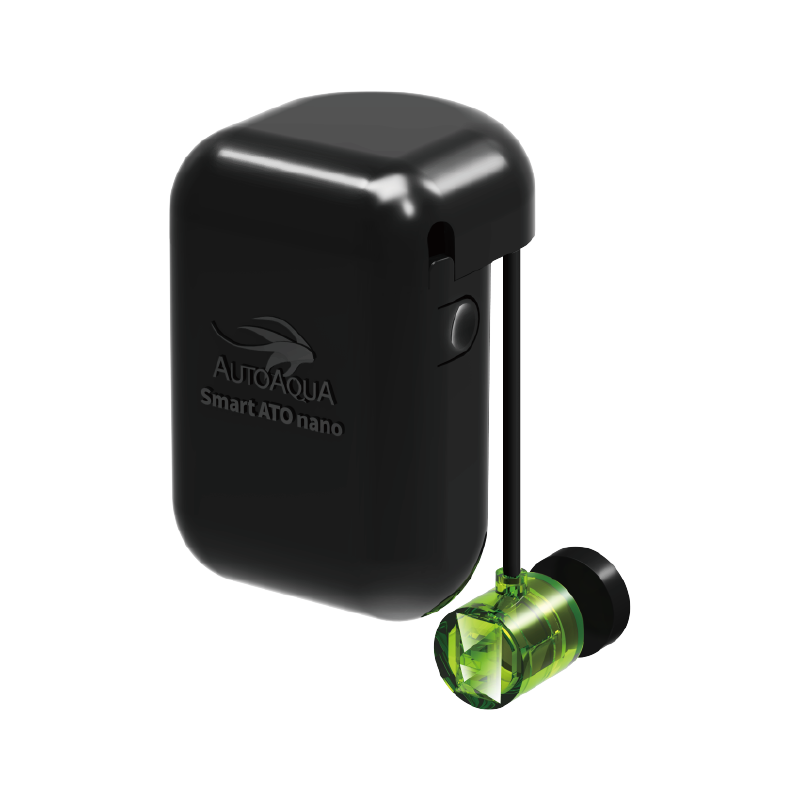

Smart ATO nano Controller
ATO_nano

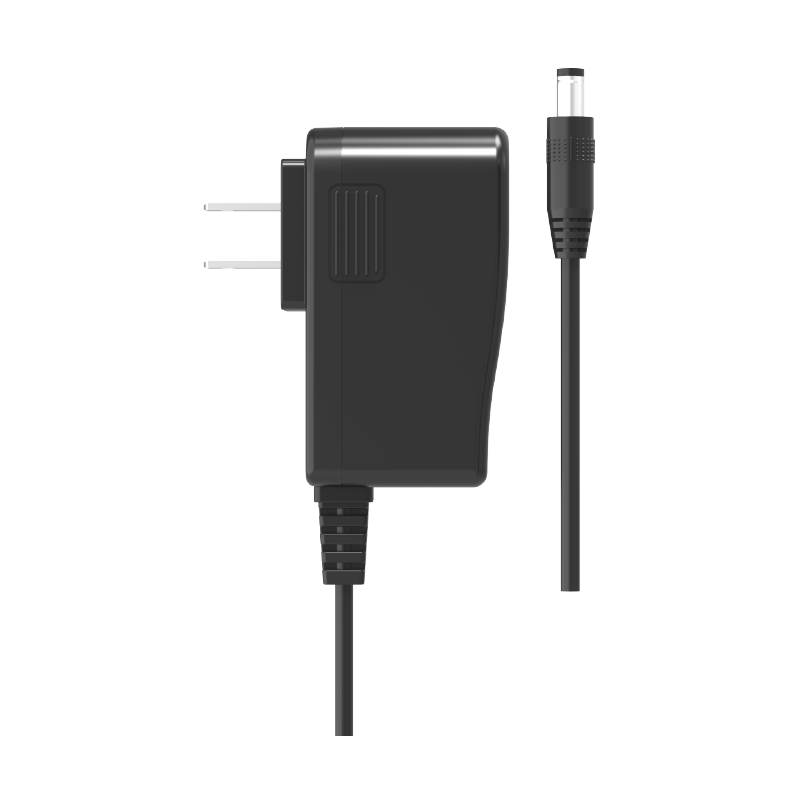

Universal Power Adapter
ATO_nano

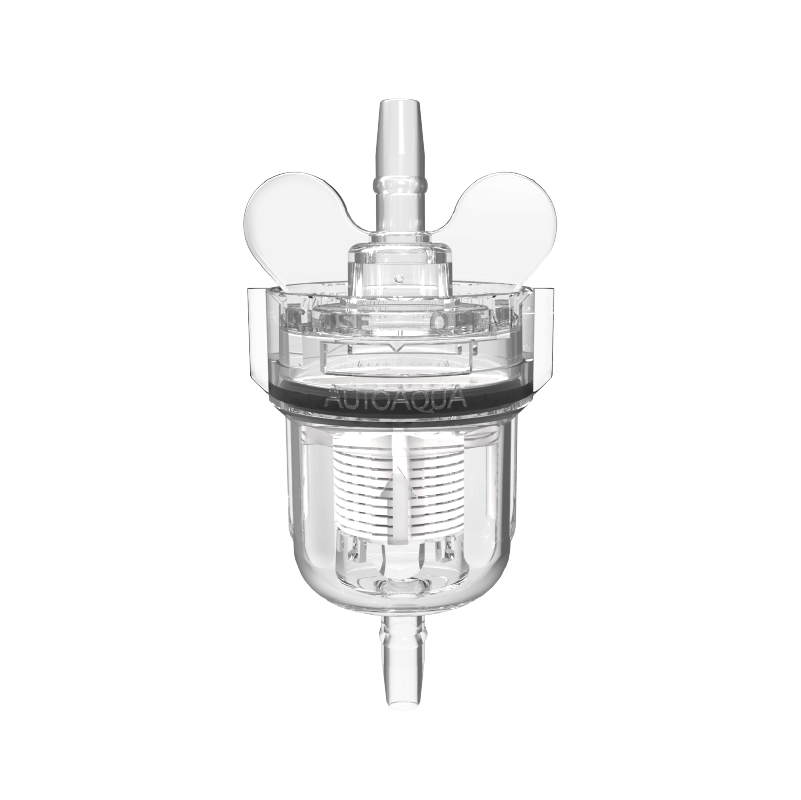

Prefilter
ATO_nano

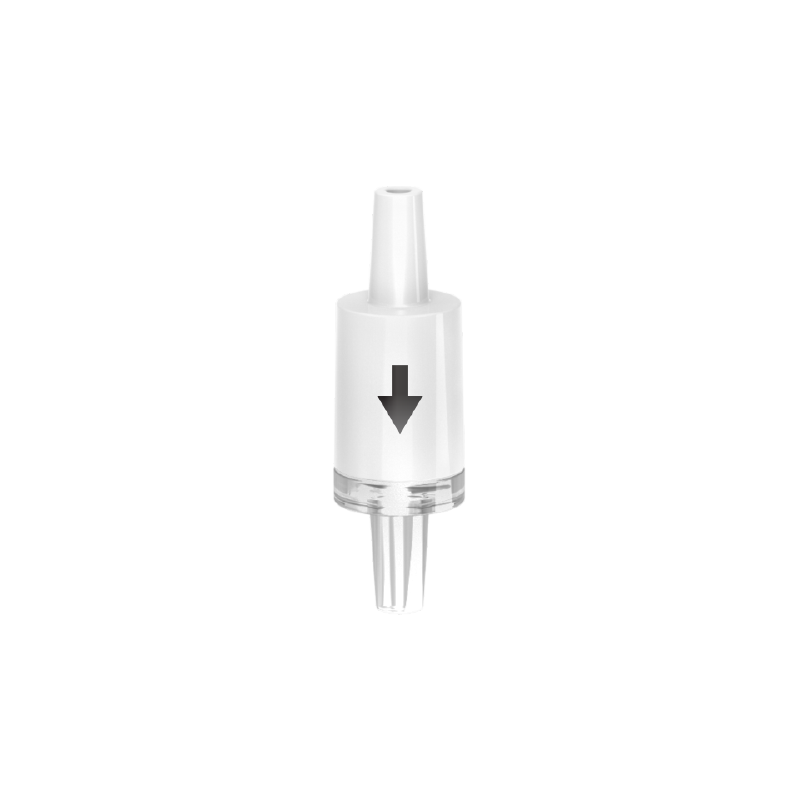

Anti-Siphon Valve
ATO_nano

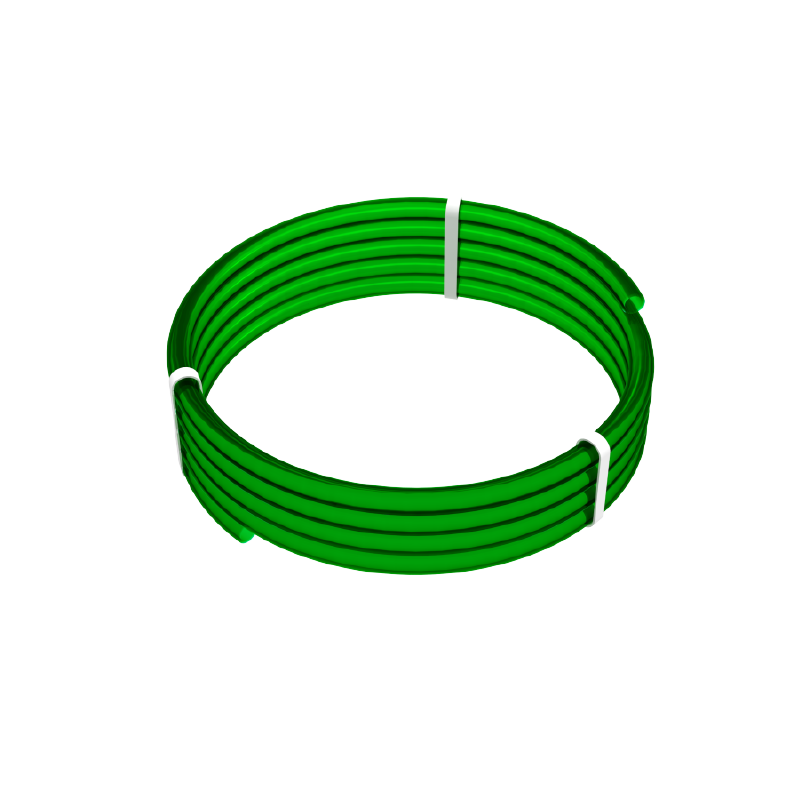

Tubing 6.5 ft (200 cm)
SPECIFICATIONS
BOX_ATO_nano
Smart ATO nano (SATO-270D)
  • Power :
    - Input : 100-240 VAC 50-60 Hz
    - Output : 12 VDC / 1A
    - Power Cable Length : 6 ft (180 cm)
  • Diaphragm Pump :
    - Suction Head : 6.5 feet (200 cm)
    - Flow Rate : 7.9 gph (30 lph)
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Holder : 0.12-0.39 inch (3-10 mm)
  • Anti-Siphon Valve :
    - Anti-Siphon Pressure : 2 feet (60 cm) of water. The height from water level of reservoir to tube outlet must be smaller than 2 feet (60 cm).
    - Cable Length of Sensor : 1.5 feet (45 cm)
  • Tubing :
    - Length : 6.5 feet (200 cm)
    - ID : 5/32 inch (4 mm) / OD : 1/4 inch (6.4 mm)
  • INSTALLATION DIAGRAM
    figure01
    *Please set the sensor away from the water outlet to avoid bubble interference.
