Smart ATO RO
Auto Top Off for RO System
SATO-460V
Smart-ATO-RO
An ATO specially designed to fill RO water reservoir from RO or RODI system directly.
It comes with two duo sensors which provides double protection and avoid TDS creep.
SMART & SIMPLE

Smart ATO RO is a reliable device that can automate refilling your ATO reservoir without forgetting to turn off your RO/DI system and in risk of catastrophic floods.

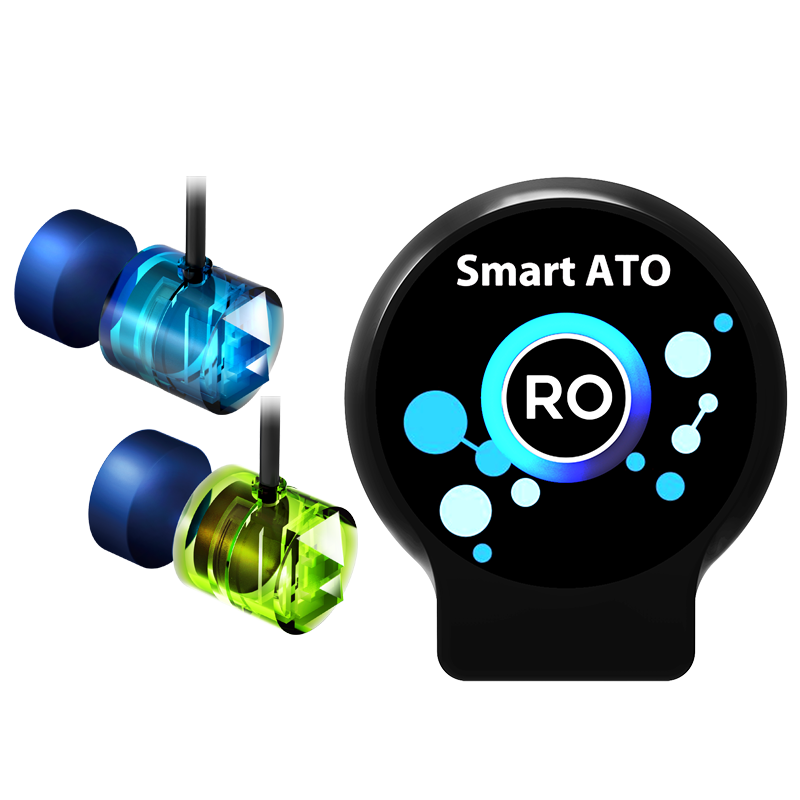

The compact design suitable for all containers sizes with magnetic-mount dual optical sensors.

Smart-ATO-RO
PRECISE DETECTION

Magnetic-Mount Dual-optical sensors in one tiny package provide dual protection. If the main sensor is defective, the failsafe sensor will be a backup to prevent overfilling.

Smart-ATO-RO
HIGH LEVEL SAFETY

Equipped with two dual sensors and a float valve kit which enhanced protection against overfilling.

With a built-in timer , the QST provides real-time failsafe protection to prevent any failure situation along with audible and LED Indicator alarm.

Smart-ATO-RO
AVOID TDS CREEP

The Smart ATO RO with super convenient installation by connecting your RO/DI systems to water storage directly.

Long run-time ensures purified RO/DI water for your aquariums and not only avoids TDS Creep but also save your resin!

Smart-ATO-RO
WATER RESISTANT DESIGN

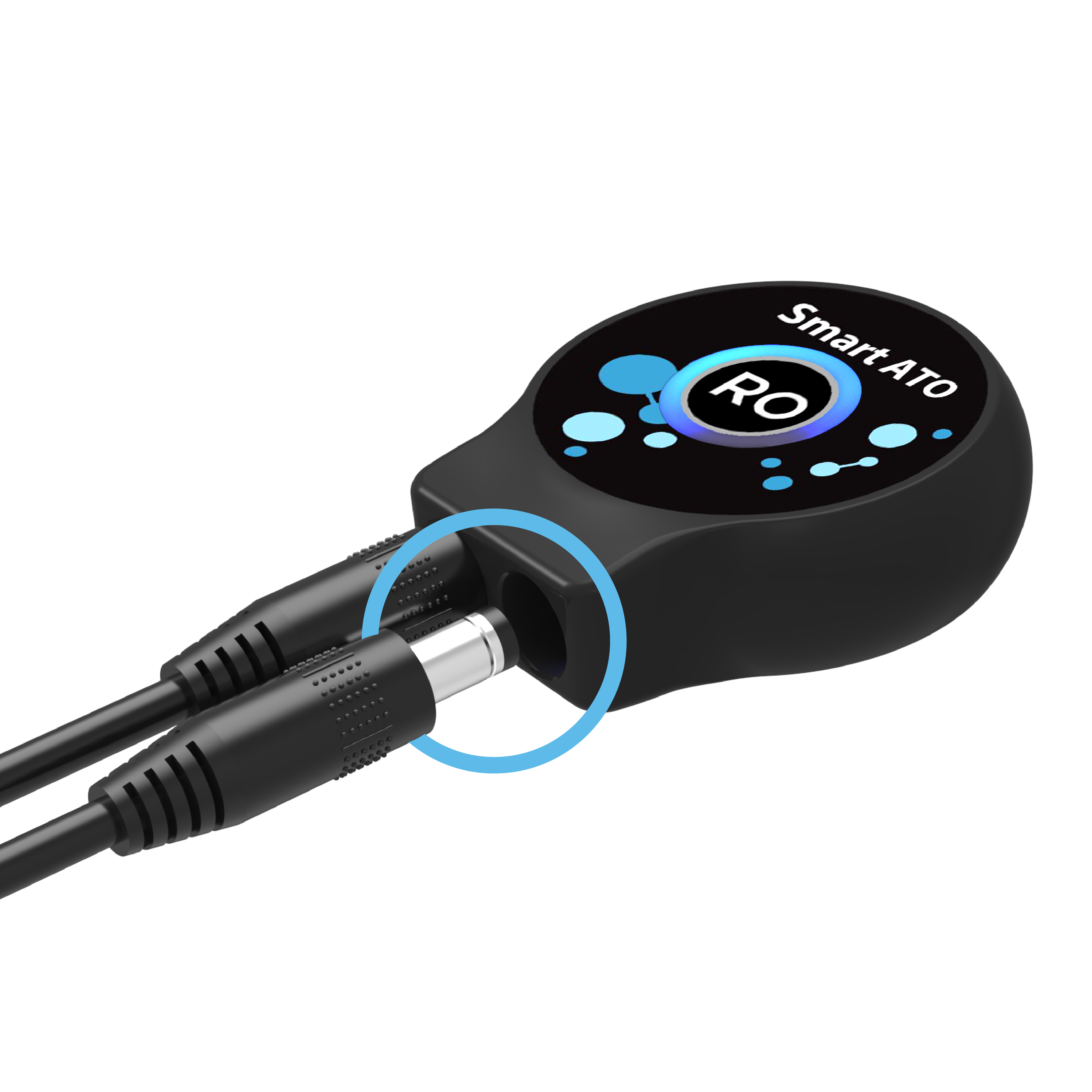

The special design of the Smart ATO RO can prevent the connector of the pump and the power adapter from being rusted or damaged due to water and ensure users safety and longer product lifetime.

Smart-ATO-RO
RELIABLE & DURABLE

Everything are included in the package to set up the system in a moment. High quality and durable components provide high reliability.

Smart-ATO-RO
Save Your Resin!

Smart ATO RO is a reliable device to fill your RO or RO/DI water reservoir automatically. When the water level falls down to the low-level sensor, it will fill the reservoir up to the high-level sensor. You can avoid TDS creep in the reservoir and always get clear RO or RO/DI water for your aquariums but never have to worry about forgetting to turn off your RO or RO/DI system causing catastrophic floods.

Smart ATO RO comes with two precise dual sensors along with a float ball switch which provide extremely protection to prevent accidental floods.

Smart-ATO-RO
INCLUDED
Smart-ATO-RO
Smart ATO RO Controller
Smart-ATO-RO
Universal Power Adapter
Smart-ATO-RO

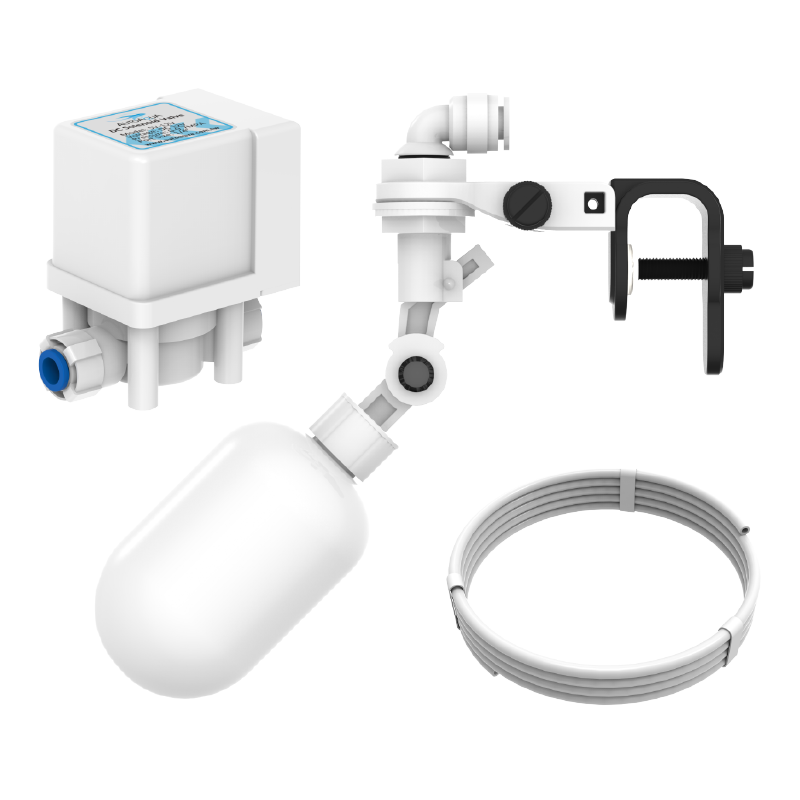

DC Solenoid Valve
Smart-ATO-RO
Float Valve Kit
Smart-ATO-RO

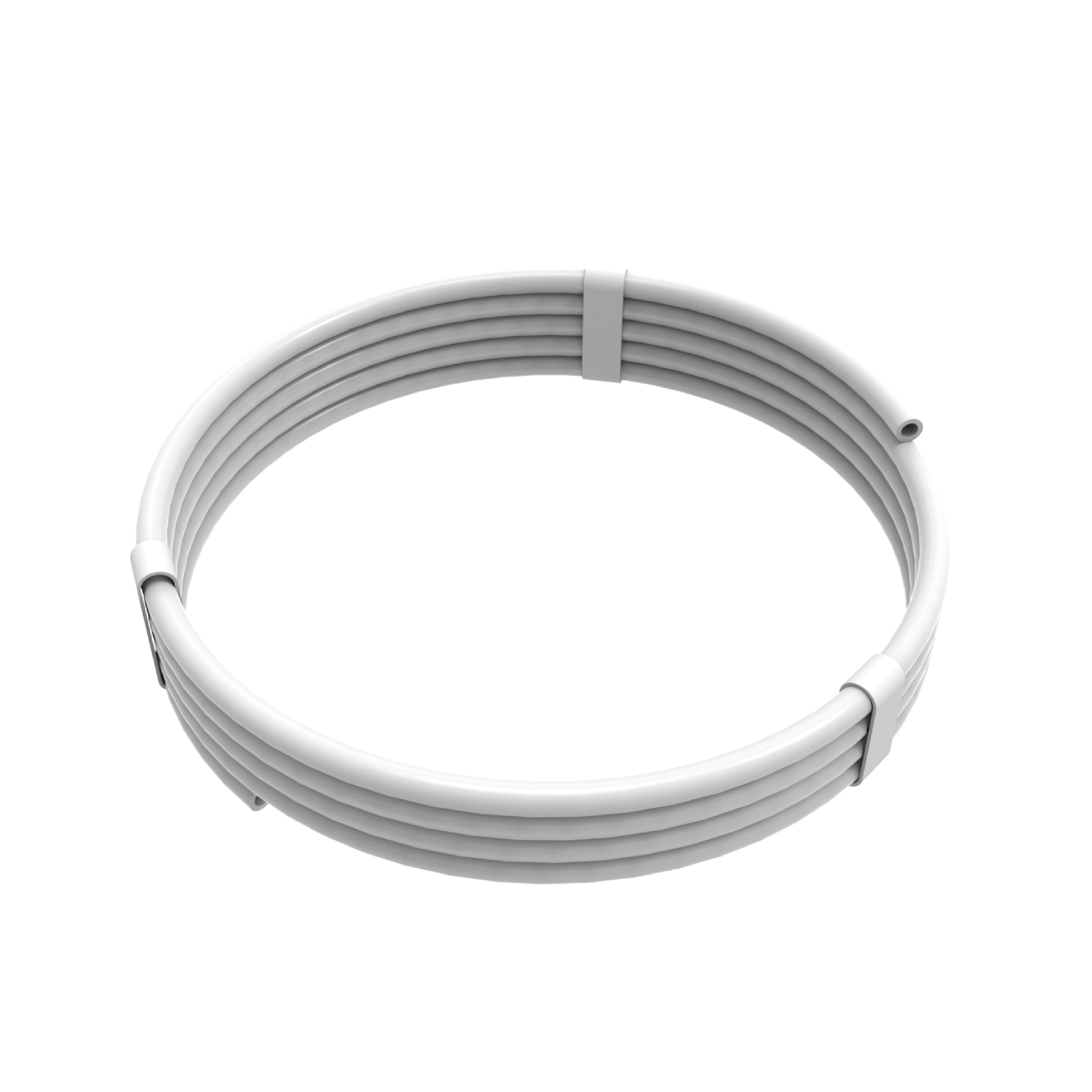

1/4-inch RO Tubing 9.8 feet (300 cm)
SPECIFICATIONS
Smart-ATO-RO
Smart ATO RO (SATO-460V)
  • Power :
    - Power Input : 100-240 VAC 50-60 Hz
    - Power : 4.5 W @ DC 12 V
    - Power Cord Length : 6 feet (180 cm)
  • DC Solenoid Valve :
    - Power : 6W @ 12 VDC
    - Pressure : 0.02-0.7MPA
    - Port : 1/4-inch RO Tubing Connection
    - Cable Length : 4 feet (120 cm)
  • Max. Mounting Thickness :
    - Sensor : 1/2 inch (12.7 mm)
    - Universal Tube Holder : 3/4 inch (19 mm)
  • Length of Cable between Sensor and Controller : 6 feet (180cm)
  • Tubing :
    - Length : 9.8 feet (300 cm)
    - 1/4-inch RO Tubing

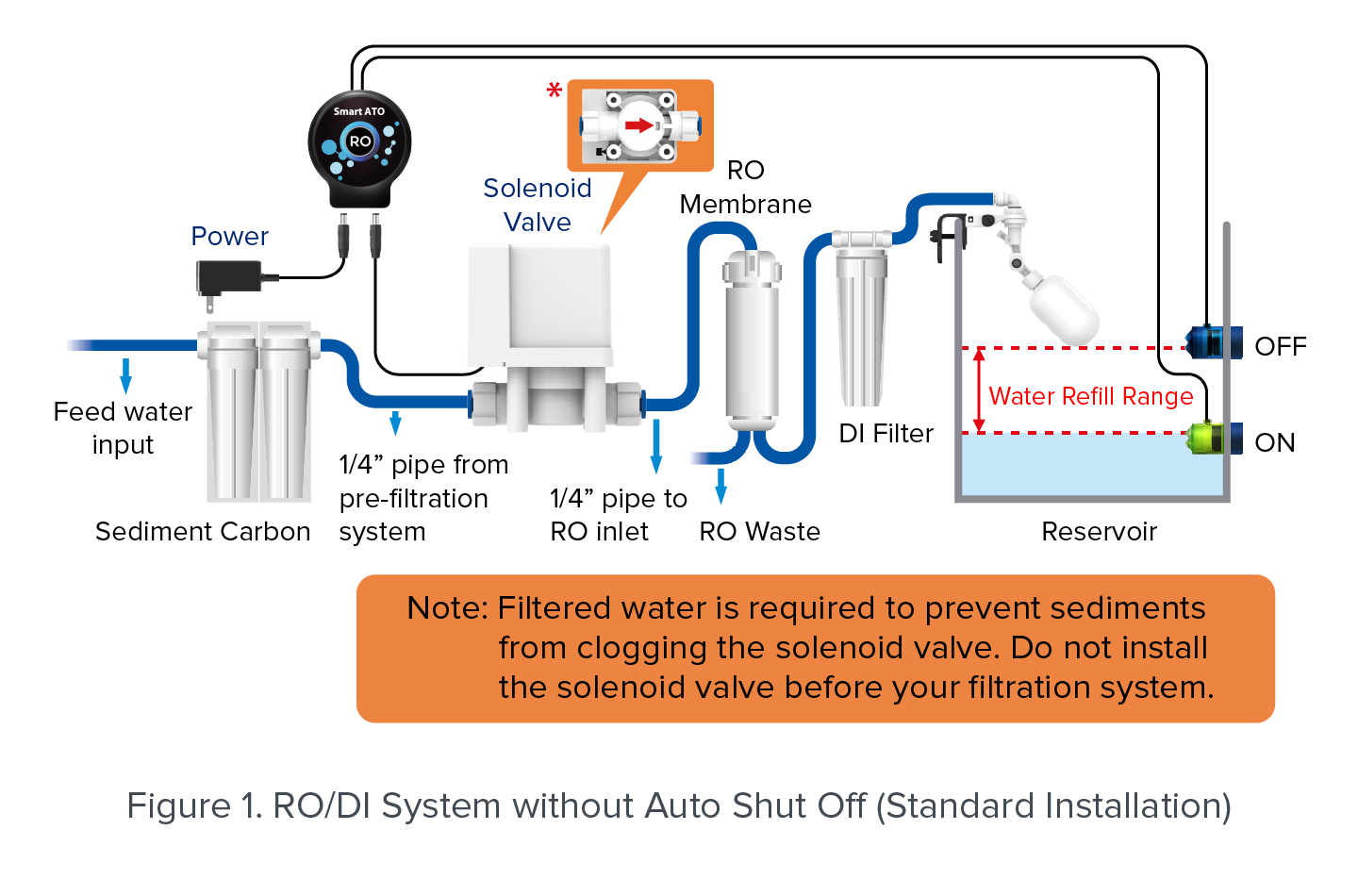

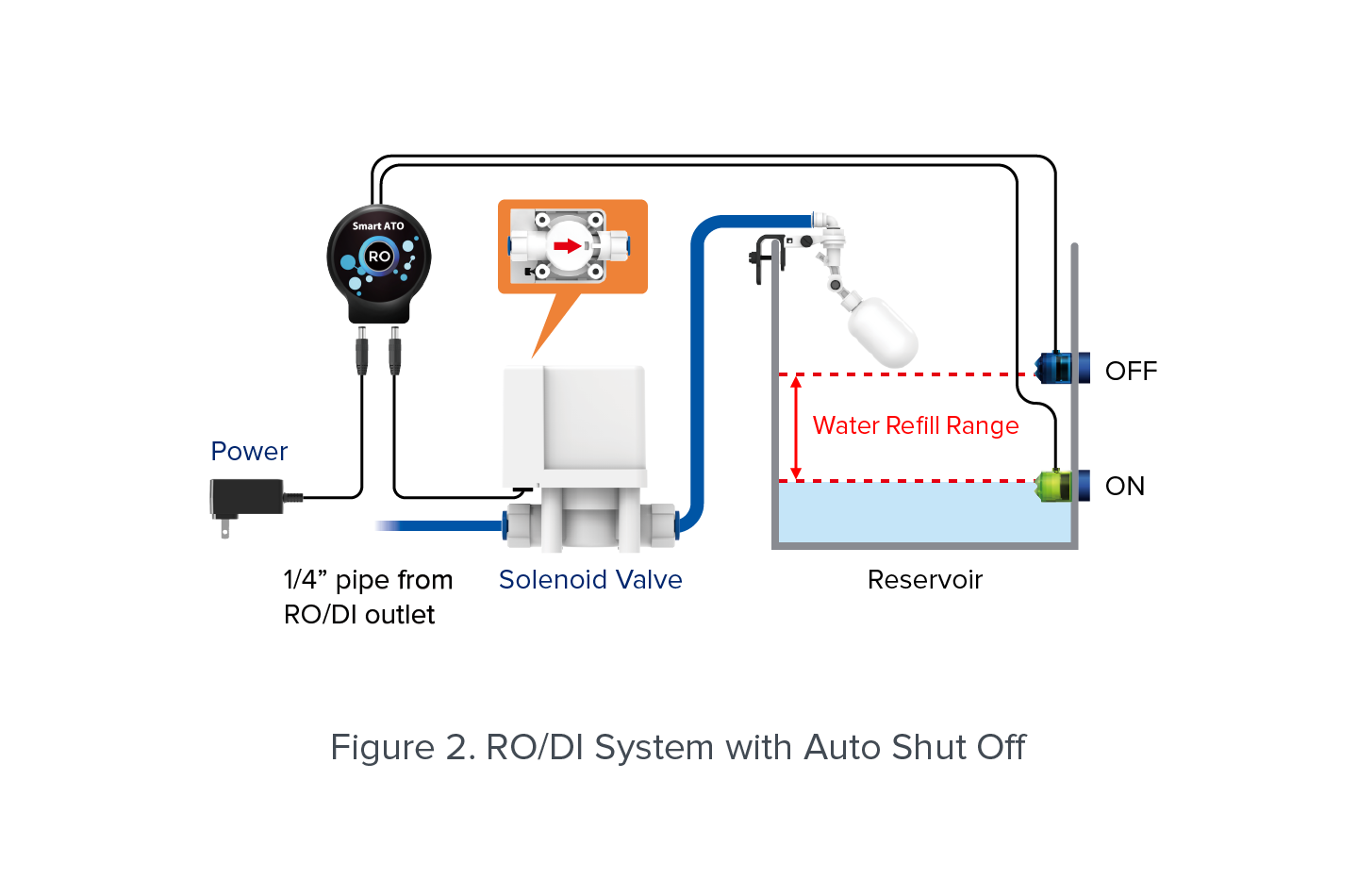

  • INSTALLATION DIAGRAM
    figure01 figure02
