High Pressure Pump for water change with long distance reservoir
Auto Water Change # 1| AUTOAQUA Insights

If you require a high head for a remote sump or AWC reservoir placed long away from the tank, AQUA Lifter Pump High Pressure can push water vertically high up to 60 feet (18 m) or horizontally to 600 feet (180 m) length.

The AQUA Lifter Pump High Pressure’s versatility is also unmatched. It can be used with ATO and AWC for pushing water to a higher head but quiet, low power, and more safety. For Smart AWC Duo G2, P1, P2, and P3 can all be replaced by AQUA Lifter Pump High Pressure.

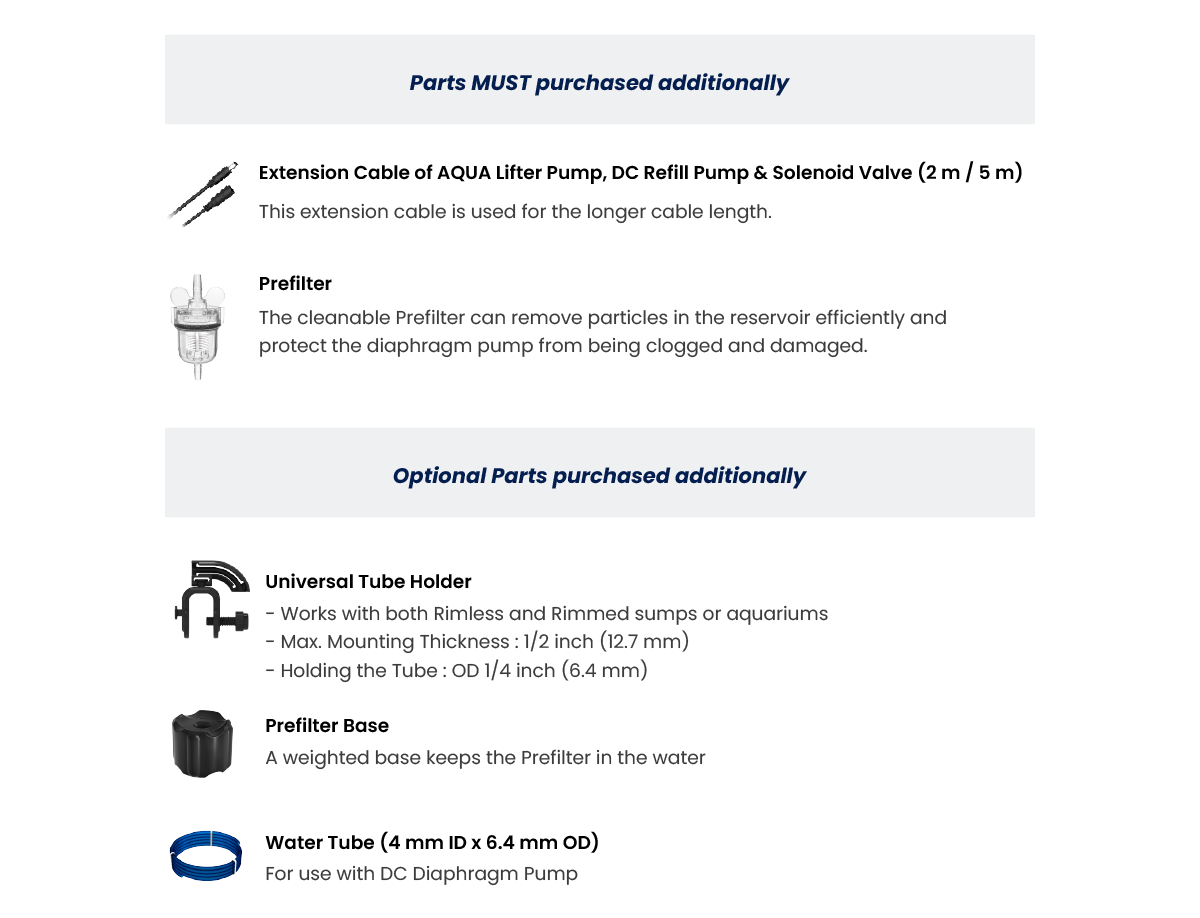

Don’t worry about the pump cables are not long enough. There are two lengths (2 m and 5 m) of the extension cables of AQUA Lifter Pump, AQUA Lifter Pump High Pressure, DC Refill Pump, and DC Solenoid Valve.

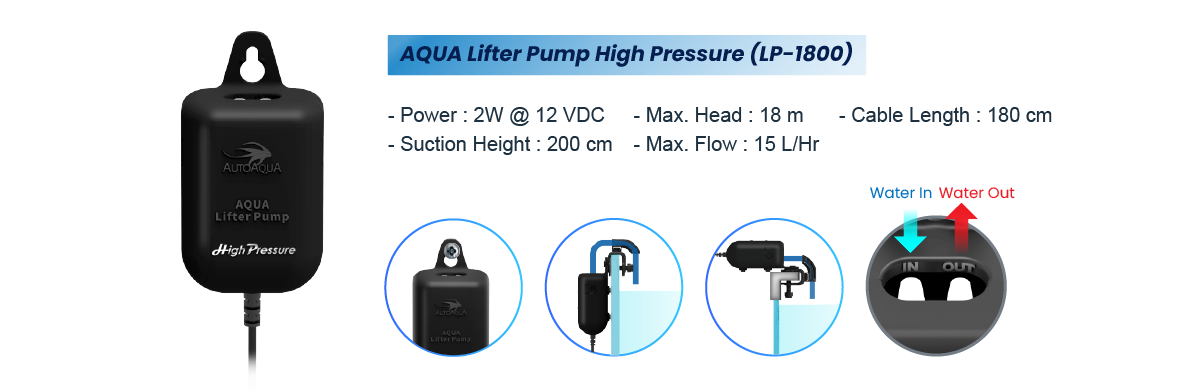

● AQUA Lifter Pump High Pressure (LP-1800)

There are 3 ways that the AQUA Lifter Pump High Pressure can be placed at the reservoir. The holder of the pump can be hanged on both rimless and rimmed aquariums, according to the configuration of the tank. Also, it can be easily mounted with a screw or nail on your aquarium cabinet/stand to reduce pump vibration.

It is clearly marked with water inlet and outlet symbol to prevent installation error.

tips

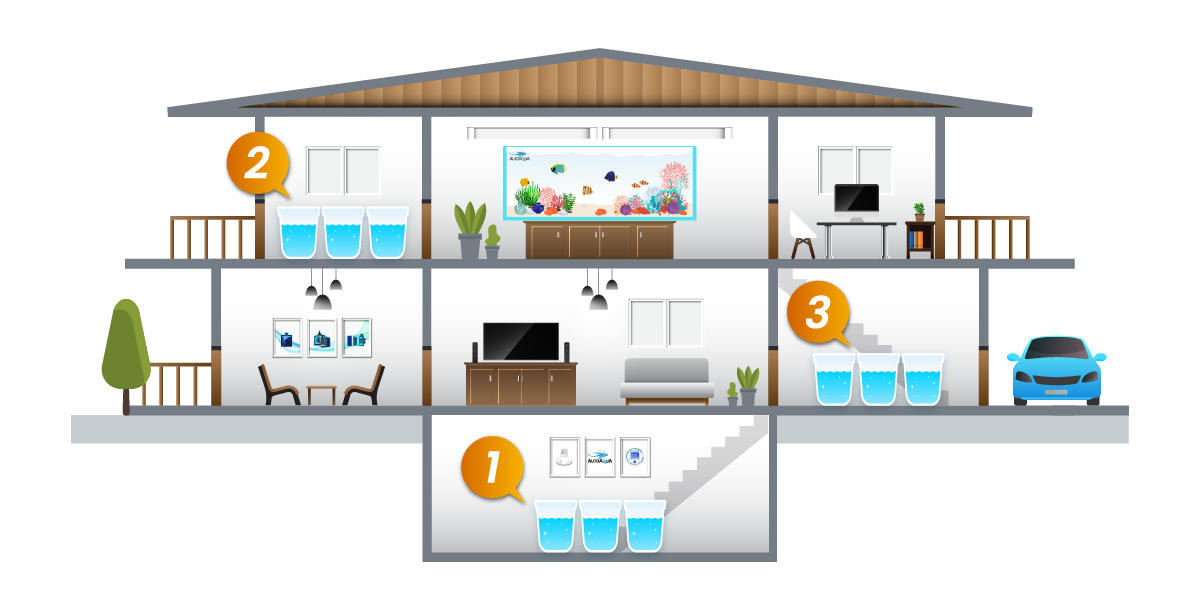

Three High Pressure Pump Installation Scenario

The following 3 installations are suitable for both vertical and horizontal. Diverse installation will present different pump head performance.

tips



● Scenario 1 : Reservoir from basement or garage to upper level

The pump can push water vertically to max. 60 feet (18 m) height.

tips



● Scenario 2 : Reservoir in the same floor but far away from tank

The pump can push water horizontally to max. 600 feet (180 m) length.

tips



● Scenario 3 : Reservoir in the different floors and far away from tank

The pump can push water vertically to max. 30 feet (9 m) height & horizontally to max. 300 feet (90 m) length simultaneously.

tips



tips
